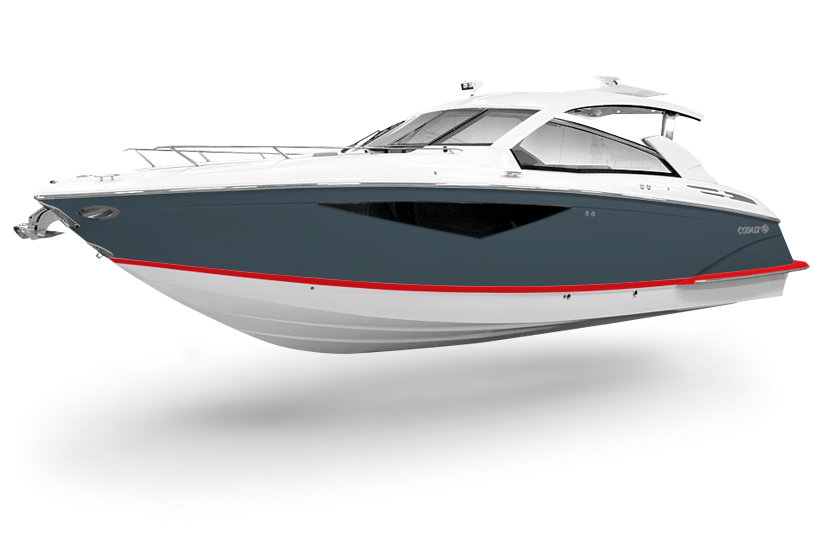

A36
A36
An industry-first, the A36 combines the comforts of a coupe-top design with the practical features of a bow rider. Add to that a fully equipped cabin that features a V-berth, and you’ll see why the Cobalt A36 stands out from the crowd.
LOA:
Beam:
Seating Capacity:
Dry Weight:
A36 Music Video
Technical Details
| Length Overall w/ Swim Platform | 35' 11'' | 10.95 m |
| Beam | 11' 2'' | 3.40 m |
| Interior Cockpit Width | 110'' | 2.79 m |
| Deadrise at Transom | 22º | 22º |
| Fuel Capacity - Gasoline | 189 gal. | 715 L |
| Freshwater Capacity | 27 gal. | 102 L |
| Holding Tank Capacity | 10 gal. | 38 L |
| Bridge Clearance | 9' 1'' | 2.77 m |
| Draft Drive Up | 31'' | 0.78 |
| Draft Drive Down | 42'' | 1.07 |
| Dry Weight | 16000 | 7,257 kg |
| Boat Certified Capacity | Yacht Certified | |
| Boat Certified Capacity w/gear | Yacht Certified |
A36 Volvo Penta Power Selections
- Twin V8-380CE DP - 380 hp (283 PkW)
- Twin V8-430CE DP - 430 hp (321 PkW)
A36 Engine Enhancements - Standard
- Active Corrosion Protection-Vol Diesel
- EVC w/PTA & Cruise (Volvo)
- Trip Computer (Volvo EVC)
A36 Engine Enhancements - Optional
- Autopilot (Volvo)
- Joystick Sterndrive w/E Key-Volvo
- Ocean-X (Volvo)
A36 Dash and Instrumentation - Standard
- Compass, Digital
- Depth & Water Temp Pkg.
- Digital Spyder Controls
- Glass Cockpit w/Garmin 8612
- Premium Black Leather/SS Steering Wheel
- Windshield Wiper, Stbd.
A36 Entertainment System - Standard
- Custom Acoustic Cabin Spkr. Covers
- iPod/USB/MP3 Port
- Premium Sound System w/Transom Remote & Spkrs.
- Stereo Remote, Dash
A36 Interior - Standard
- Cabin Skylights
- Cabinetry, Gray Driftwood
- Fiberglass Liner w/Sea Grass Floor Cover
- Head w/Sink & VacuFlush Toilet
- Integrated Cabin Filler Cushion
- LED Overhead Lighting, Cabin
- Panoramic Cabin Windows
- Suspended Cabin Headliner
A36 Exterior - Standard
- Bow Rails, Stainless Steel
- Dinette Table, Cockpit
- Direct Bond Edge-Style Windshield
- Fender Clips w/Line (6) Detailx
Fender Clips w/Line (6)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- Foredeck Sunpad Filler Cushion Set
- LED Lighting & Dual Spkrs., Coupe Top
- Motorbox Actuator, Electric
- Snap-In Carpet, Cockpit
- Stainless Steel Cupholders
- Swim Platform w/Ladder, Hydraulic
- Transhield Shipping Cover
- Transom Storage Lockers
A36 Structure and Safety - Standard
- 10/5/3 Year Warranty Protection
- Battery Charger, 60 amp
- CO Monitor
- Composite Floor
- Composite Transom
- Fiberglass Cockpit Liner
- Fiberglass Stringer System
- Fire Extinguisher, Manual (2)
- Galvanic Protection
- Ignition Safety Switch Detail
- Kevlar Reinforced Hull
- Shorepower-110v, Dual 30 amp
- Tool Kit Detail
- Trim Tabs, Electric w/Autoglide System
- Windlass, All Chain w/Anchor Detailx
Windlass, All Chain w/Anchor
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 125 feet of chain and plaited line. Installation may vary depending on specific boat model.
A36 Canvas - Optional
- Bow Tonneau Cover
- Full Canvas Enclosure Package
A36 Dash and Instrumentation - Optional
- Compass, Magnetic
- Radar, Garmin 24'' HD Dome w/Shelf
- Radar, Garmin 48'' Open Array w/Shelf
- VHF Radio w/Antenna
- Glass Cockpit w/16" Dual Screen Upgrade
- Radar, Garmin 24'' HD Dome w/KVH & Shelf
- Radar, Garmin 48'' Open Array w/KVH & Sh
A36 Entertainment System - Optional
- Satellite Radio System
- Satellite TV (Inland)
- Satellite Weather System
- TV Antenna & Cable Hook-Up
- TV w/Lift, Cockpit
- Cabin Entertainment Package (TV/DVD)
- Platinum Sound System
- Satellite TV (Coastal)
A36 Interior - Optional
- Air Conditioning/Heat Self-Prime,Cockpit
- Air Conditioning/Heating, Cockpit
- Gray Water System
- Head w/VacuFlush, Macerator
- LED Interior Accent Lighting (RGB)
- Remote Courtesy Lights w/key fob
- Throw Pillows, Weighted (10) Detailx
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (4) Detailx
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Floor, Teak (Bow, Cockpit, Walk-Thru)
A36 Exterior - Optional
- Teak Swim Platform
- Barbeque Grill ,Cockpit Detail
- Docking Lights-Stainless Steel
- Flagpole w/Flag Detailx
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag. Shown on model 232 with arch.
- Floor Covering, Sea Grass-Cockpit
- Fresh Water Washdown, Bow
- Refrigerator, Cockpit
- Spotlight, Remote
- Transom Shower
- Underwater Lighting
- Coupe Top w/LED Lighting (std)
- Equipment Shelf (Coupe mounted)
- Sof-Trac Mat, Swim Platform
- Swim Platform Transom Lighting
- Transom Tilt Switches
- Sof-Trac Marine Mat, Cockpit
- Galley w/Sink, Cockpit (replaces seat)
- Cockpit Seat, Stbd.
A36 Structure and Safety - Optional
- CE Requirements
- Chain Counter for std. Windlass
- Fire Extinguisher, Automatic System
- Shorepower-220v, Dual 30 amp
- Captain's Call Exhaust
- Generator (Gas) 6.5kW
Download PDF
Only A Cobalt
Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:
- Hydraulic swim platform
- Maximum interior space
- 21-layer hand-laid fiberglass at keel
- Deep-V hull design for smooth ride
- Double French-stitched interiors
- Molded-in gelcoat graphics
- Extended running surface
