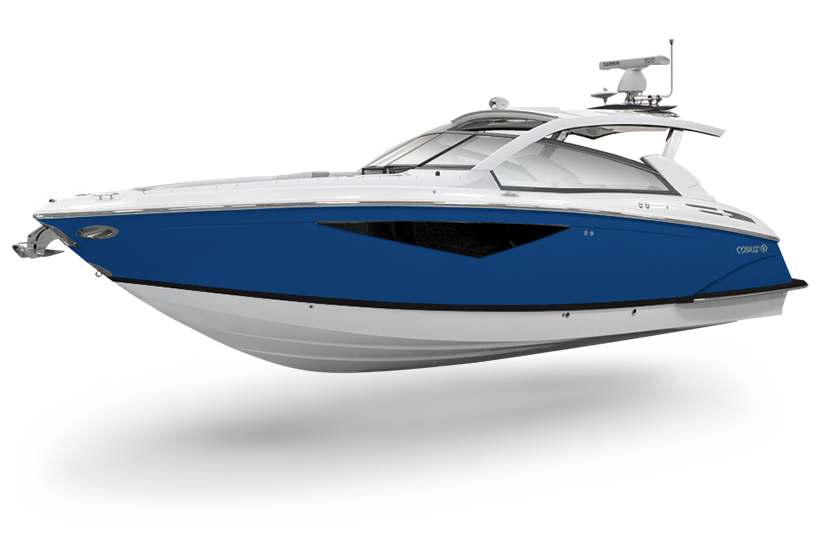

A36BR

A36BR
With deeper, more spacious bow seating than ever before, the all new A36BR combines the coupe-top design and popular appearance of the A-Series, but adds additional seating and a more ergonomical cockpit. The A36BR maintains its high-end, roomy feel with a cabin featuring a hidden filler cushion that folds down to create a sleeping surface for two. The Cobalt A36BR will provide many special moments that you’ll be proud to share with family & friends.
Design Your Dream A36BRLOA:
Beam:
Seating Capacity:
Dry Weight:
Technical Details
Length Overall w/Swim Platform | 35' 11'' | 10.95 m |
Beam | 11' 2'' | 3.40 m |
Interior Cockpit Width | 110'' | 2.79 m |
Deadrise at Transom | 22º | 22º |
Fuel Capacity - Gasoline | 189 gal. | 715 L |
Freshwater Capacity | 27 gal. | 102 L |
Holding Tank Capacity | 10 gal. | 38 L |
Bridge Clearance | 9' 1'' | 2.77 m |
Draft Drive Up | 31'' | .78 m |
Draft Drive Down | 42'' | 1.07 m |
Dry Weight (varies with options) | 16000 | 7,257 kg |
Boat Certified Capacity | Yacht Certified | |
Boat Certified Capacity w/gear | Yacht Certified |
A36BR Volvo Penta Power Selections
- Twin V8-380CE DP - 380 hp (283 PkW)
- Twin V8-430CE DP - 430 hp (321 PkW)
A36BR Engine Enhancements - Standard
- Active Corrosion Protection
- EVC w/PTA & Cruise (Volvo)
- Trip Computer (Volvo EVC)
A36BR Engine Enhancements - Optional
- Autopilot (Volvo)
- Joystick Sterndrive w/E Key (Volvo)
- Ocean-X (Volvo) Detailx
Ocean-X (Volvo)
Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.
A36BR Dash and Instrumentation - Standard
- Compass, Digital
- Depth & Water Temp Pkg.
- Digital Spyder Controls
- Glass Cockpit, Garmin 7612
- Premium Black Leather/SS Steering Wheel
A36BR Entertainment System - Standard
- Custom Acoustic Speaker Covers
- iPod/USB/MP3 Port Detailx
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
- Premium Sound System w/Transom Remote & Spkrs.
- Stereo Remote, Dash
A36BR Interior - Standard
- Cabin Skylights
- Cabinetry, Gray Driftwood
- Fiberglass Liner w/Sea Grass Floor Cover Detail
- Head w/Sink & VacuFlush Toilet Detail
- Integrated Cabin Filler Cushion
- LED Overhead Lighting, Cabin
- Panoramic Cabin Windows
- Suspended Cabin Headliner
A36BR Exterior - Standard
- Bow Rails, Stainless Steel
- Dinette Table, Cockpit Detail
- Direct Bond Edge-Style Windshield
- Fender Clips w/Line (6) Detailx
Fender Clips w/Line (6)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- Hard Top Sunroof
- Motorbox Actuator, Electric
- Snap-In Carpet, Cockpit
- Stainless Steel Cupholders
- Swim Platform w/Ladder, Hydraulic
- Transhield Shipping Cover
- Transom Storage Locker(s)
A36BR Structure and Safety - Standard
- 10/5/3 Year Warranty Protection
- Battery Charger, 60 amp
- CO Monitor
- Composite Floor
- Composite Transom
- Fiberglass Cockpit Liner
- Fiberglass Stringer System
- Fire Extinguisher(s), Manual
- Galvanic Protection
- Ignition Safety Switch Detail
- Kevlar Reinforced Hull
- Shorepower-110v, Dual 30 amp
- Tool Kit Detail
- Trim Tabs, Electric w/Autoglide System Detail
- Windlass, All Chain w/Anchor Detailx
Windlass, All Chain w/Anchor
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 125 feet of chain and plaited line. Installation may vary depending on specific boat model.
A36BR Canvas - Optional
- Bow Tonneau Cover Detailx
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
- Electric Sureshade
- Full Canvas Enclosure Package Detail
- Shade Sail, Bow Detail
A36BR Dash and Instrumentation - Optional
- Compass, Magnetic
- Glass Cockpit w/16'' Dual Screen Upgrade
- Radar, Garmin 24'' HD Dome w/KVH & Shelf
- Radar, Garmin 24'' HD Dome w/Shelf
- VHF Radio w/Antenna
- Windshield Wiper, Stbd.
A36BR Entertainment System - Optional
- Cabin Entertainment Package (TV/DVD)
- Platinum Sound System
- Satellite Radio System
- Satellite TV (Coastal)
- Satellite TV (Inland)
- Satellite Weather System
- TV Antenna & Cable Hook-Up
- TV w/Lift, Cockpit
A36BR Interior - Optional
- Air Conditioning/Heat Self-Prime
- Air Conditioning/Heating
- Floor, Teak (Bow, Cockpit, Walk-Thru)
- Gray Water System
- Head w/VacuFlush, Macerator Detail
- LED Interior Accent Lighting (RGB) Detail
- Remote Courtesy Lights w/key fob
- Throw Pillows, Weighted (10) Detailx
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (4) Detailx
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
A36BR Exterior - Optional
- Barbeque Grill, Cockpit (w/Galley only) Detail
- Bow Entertainment Pkg.
- Bow Port Console Armrest
- COBALT Lettering, Satin Black (exterior) Detail
- Cockpit Seat, Stbd.
- Docking Lights-Stainless Steel Detail
- Equipment Shelf (Hardtop mounted)
- Flagpole w/Flag Detail
- Floor Covering, Sea Grass-Cockpit Detailx
Floor Covering, Sea Grass-Cockpit
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
- Fresh Water Washdown, Bow
- Galley w/Sink, Cockpit Detail
- Hard Top Sliding Hatch (manual)
- Hard Top w/LED Tri-Color Lighting
- Refrigerator, Cockpit Detail
- Sof-Trac Mat, Cockpit Detailx
Sof-Trac Mat, Cockpit
Sof-Trac mat combines an aggressive non-skid traction with the soft feel of a cushioned pad. Durable and stylish, the sof-trac mat is a water sport enthusiast favorite. (Shown in the Cobalt R8.)
- Sof-Trac Mat, Swim Platform
- Spotlight, Remote Detail
- Swim Platform Transom Lighting
- Teak Swim Platform
- Transom Shower Detail
- Transom Tilt Switches (twin) Detailx
Transom Tilt Switches (twin)
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
- Underwater Lighting Detailx
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model 302. Swim platform transom lighting also shown.
- Docking Lights-Stainless Steel Detail
A36BR Structure and Safety - Optional
- Captain's Call Exhaust-twin
- CE Requirements
- Chain Counter for Std. Windlass Detailx
Chain Counter for Std. Windlass
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 125 feet of chain and plaited line. Installation may vary depending on specific boat model.
- Fire Extinguisher, Automatic System Detailx
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
- Generator (Gas) 6.5kW
- Shorepower-220v, Dual 30 amp



Experience Extraordinary
Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:
- Hydraulic swim platform
- Maximum interior space
- Hand-laid fiberglass at keel
- Deep-V hull design for smooth ride
- Double French-stitched interiors
- Molded-in gelcoat graphics
