CS22

Name: CS22
Brand: Cobalt Boats
SKU: CS22

Refined Simplicity. Built For The water.

CS22 Exterior

Handcrafted with precision, the CS22 blends refined styling with smart, functional design. A signature wave-inspired body line and bold Obsidian windshield create a striking profile, while the integrated full-beam swim platform maximizes usable space at the waterline for effortless days on the water.

Exterior Features

Obsidian Windshield Sunpad Wave Style-Line Fender Clip

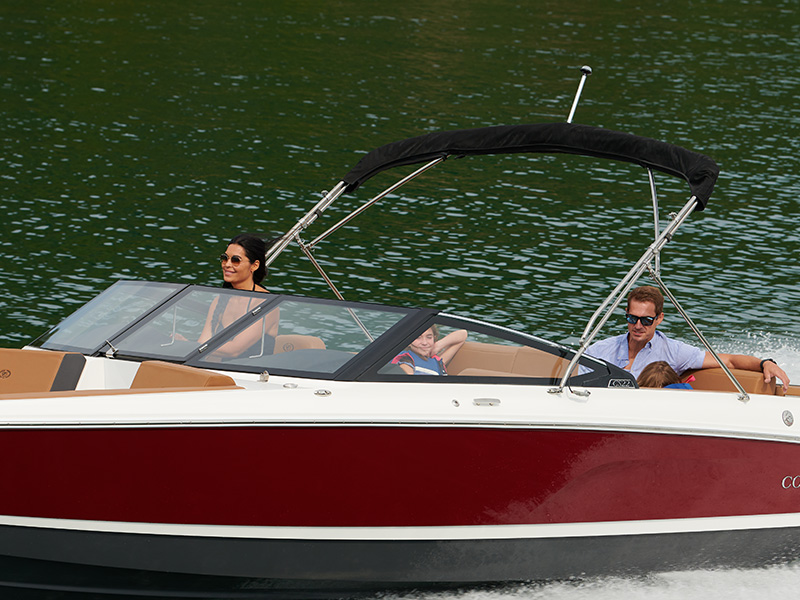

Family on a Cobalt CS22 on turquoise water showing the new Obsidian dark-frame windshield and helm area with passengers aboard

Obsidian Windshield

The Obsidian windshield introduces a sleek, modern edge with its blacked-out frame and subtle brightwork accents, enhancing both visibility and overall design presence.

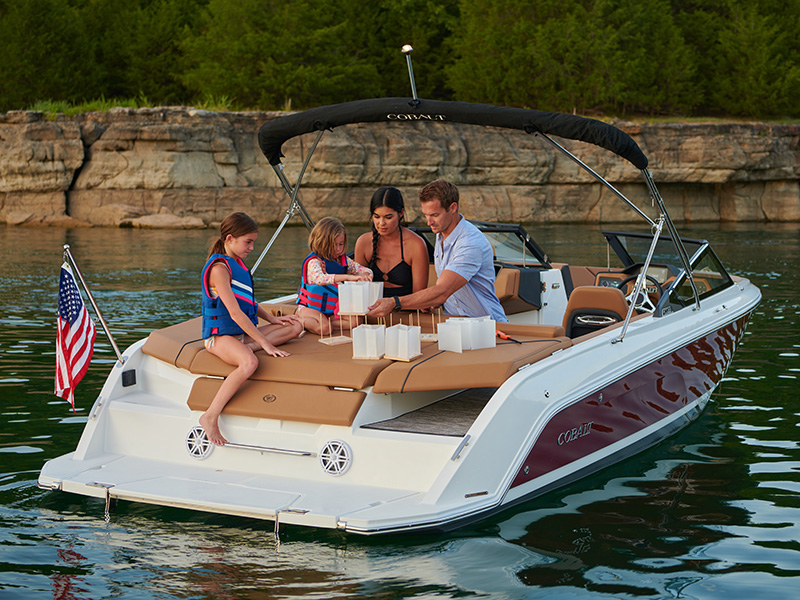

Family on a red Cobalt CS22 at speed on a lake with black bimini top deployed showing full-width bow sunpad seating area

Full Width Sunpad

With the optional walk-thru filler cushion in place, the aft seating transforms into a spacious full-width sunpad, creating a comfortable, versatile area for lounging or gearing up for the next activity.

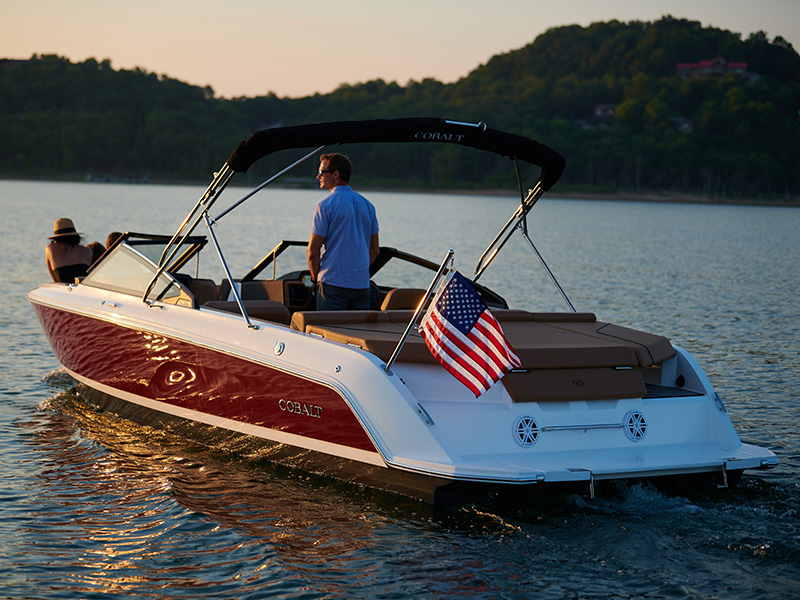

Wave Style-Line

The signature wave-inspired style line adds depth and motion to the hull design, giving the CS22 a distinctive, recognizable profile on the water.

Fender Clip Package

A stainless-steel quick-mount fender system that keeps dock lines positioned and secure. Allows fast setup and removal for easier docking and protection.

Specifications

LOA

22' 5"

Beam

8' 6"

Fuel

52 gal

Capacity

Head

View All Specs

CS22 Specifications

LOA

22' 5"

Beam

8' 6"

Fuel

52 gal

Capacity

Head

CS22 Standard Features

Specifications

Length Overall w/Swim Platform: 22' 5'' / 6.83 m
Beam: 8' 6'' / 2.59 m
Deadrise at Transom: 20 degrees / 20 degrees
Fuel Capacity: 52 gal. / 197 L
Bridge Clearance w/o Bimini: 49'' / 1.24m
Bridge Clearance w/ Bimini: 83'' / 2.11 m
Bridge Clearance w/Arch: 87'' / 2.21 m
Draft Drive Up: 23'' / .58 m
Draft Drive Down: 35'' / .89 m
Dry Weight (varies with options): 3943 lbs. / 1789 kg
Boat Certified Capacity: 12 persons / 11 persons
Boat Certified Capacity w/gear: 1695 lbs. / 769 kg

Power Selection – Volvo Penta

V6-250C-G DP - 250 hp (149 PkW)
V6-250C-G SX - 250 hp (179 PkW)
V6-280C-G DP - 280 hp (209 PkW)
V8-300C-G DP - 300 hp (224 PkW)
V8-300CE-G DP - 300 hp (224 PkW)
V8-350C-G DP - 350 hp (261 PkW)
V8-350CE-G DP - 350 hp (261 PkW)

Power Selection – MerCruiser

4.5 L MPI ECT-250 Alpha - 250 hp (186 PkW)
4.5 L MPI ECT-250 B3 DTS - 250 hp (186 PkW)
6.2 L MPI ECT-300 B3 DTS - 300 hp (224 PkW)
6.2 L MPI ECT-350 B3 DTS - 350 hp (261 PkW)

Power Selection – Monsoon

5.3L DI 350 B3 - 350 hp (261 PkW)

Dash & Instrumentation

Composite Helm Eyebrow, Custom Stitching
Depth & Water Temp Gauge Pkg.
Digital Hour Meter
GPS, Garmin 743
Black Leather/SS Steering Wheel
Stainless Steel COBALT Emblem
Stainless Steel Switches
USB/USB-C/12v Receptacle/Charger - Detail

Entertainment

iPod/USB/MP3 Port - Detail
Sound System, Bluetooth, w/6 Spkrs.
Stereo Remote, Dash - Detail
Stereo Remote, Transom (Prem/Plat. Sound)

Interior

Bow Walk-Thru Door
Helm Seat, Flip-Up
Helm Seat, Manual (sliding)
Seating Varadense Comfort
Trash Receptacle

Exterior

Aluminum Windshield, Obsidian
Bow Scuff Plate, Stainless Steel - Detail
Cleats, SS - Bow, Midship, Stern
COBALT Lettering, SS
Extended Running Surface
Graphics, Molded-In Gelcoat
Ski Tow Eye, Stainless Steel
Swim Platform w/o Ladder
Transhield Shipping Cover

Structural & Safety

10/5/3 Year Warranty Protection
Battery Switch, Single - Detail
Circuit Breaker Protected Elec System - Detail
Composite Floor
Composite Seat Bases
Composite Transom
Drink Holders (16) - Bow, Cockpit, Swim Plat.
Fiberglass Stringer System
Fire Extinguisher, Automatic System - Detail
Fire Extinguisher(s), Manual
Ignition Safety Switch - Detail
Kevlar Reinforced Hull
Stainless Steel Windshield Braces - Detail
Through Prop Exhaust

CS22 Optional Features

Power Selection – Engine Enhancements (Optional)

Active Trim, Merc (requires DTS) - Detail
Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
EVC (Volvo)
Seacore (Merc) - Detail
TCC (Titanium Ceramic Coating)-Volvo - Detail
Tow Mode (Volvo EVC)
Seacore (Monsoon)

Dash & Instrumentation

Steering Wheel, Premium Upgrade
Wireless Phone Charger w/Holder
XM Weather - Detail

Entertainment

Platinum Sound System
Platinum Sound System w/Arch Spkrs.-1 pr.
Prem Sound System w/Arch Spkrs-1 pr.
Premium Sound System
Satellite Radio System
Stereo Remote, Transom (Std. Sound)

Interior

Aft Facing Rumble Seat
Aft Walk-Thru/Sunpad Filler Cushion
Air Compressor w/Holder - Detail
Bow Cushion Insert (Fwd/Aft)
Dinette Table w/cockpit receptacle - Detail
Dinette Table, Solid Teak - Detail
Floor Covering, Sea Grass - Detail
Helm Seat, Electric
LED Interior Accent Lighting (RGB) - Detail
Sof-Trac Mat, Cockpit - Detail
Throw Pillows, Weighted (10) - Detail
Throw Pillows, Weighted (4) - Detail

Exterior

Wakeboard Racks, PTM ClampForce 3.0
Board Rack Covers, PTM
Arch, Zenith Folding w/Bimini (w/RGB)
Arch, Zenith Folding w/Bimini (w/o RGB)
COBALT Lettering, Satin Black (exterior)
COBALT Lettering, Satin White (exterior)
Docking Lights-Stainless Steel - Detail
Fender Clips w/Line (4) - Detail
Flagpole w/Flag - Detail
Sof-Trac Mat, Gunwales
Sof-Trac Mat, Swim Platform (w/o step)
Sof-Trac Mat, Swim Platform (w/step)
Swim Platform Transom Lighting
Swim Platform w/Flip-Down Step - Detail
Transom Tilt Switch - Detail
Underwater Lighting - Detail

Canvas

Bimini Top
Bow Tonneau Cover - Detail
Cockpit Tonneau Cover - Detail
Mooring Cover - Detail
Shade Sail, Bow

Structural & Safety

Battery Maintainer/Charger, 110v - Detail
Battery Maintainer/Charger, 220v - Detail
Battery Switch, Dual w/ACR (required) - Detail
CE Requirements
Cruise Control-Smart Tow (Merc DTS)
Cruise Control-Zero Off
Rearview Mirror, PTM w/Custom Cover - Detail
Rearview Mirror, Roswell w/Custom Cover
Tool Kit - Detail
Trim Tabs, Pro Control

CS22 Interior

Designed for comfort and control, the CS22 interior pairs intuitive helm technology with a refined, modern layout. Optional dual Garmin displays enhance navigation, while premium materials and thoughtful details create a seamless balance of performance, luxury, and everyday usability.

Interior Features

Redesigned Dash Passenger Seat Bow Seating Audio Systems Fresno Chil Vinyl Soft-Trac Positive Traction Mat Monsoon Engines

Cobalt R35 Coastal outboard autodeploy galley with built-in grill and microwave in use on open water

Redesigned Dash

A modern helm layout features a new steering wheel and clean, easy-to-read gauges, with available Garmin touchscreen integration for enhanced control and visibility underway.

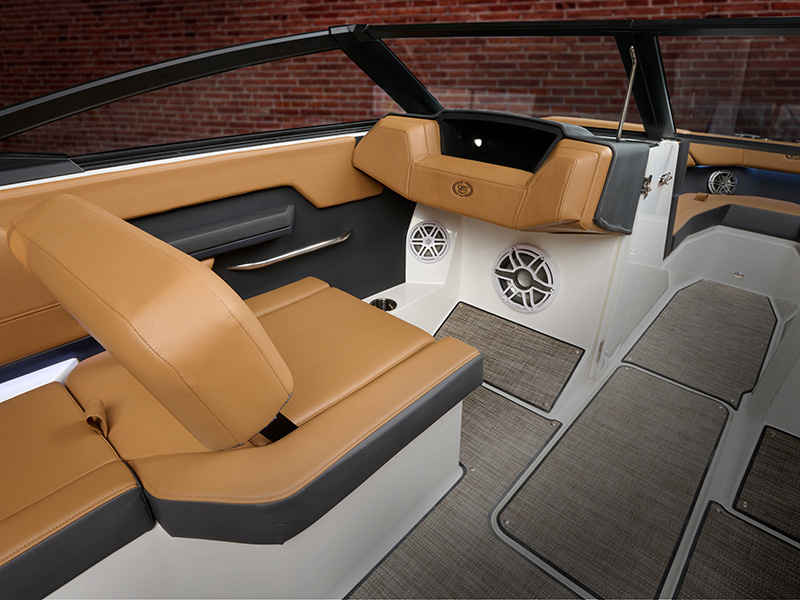

Convertible Passenger Seat

The adjustable backrest allows passengers to switch between forward- and rear-facing positions, adding flexibility and comfort for cruising or relaxing at anchor.

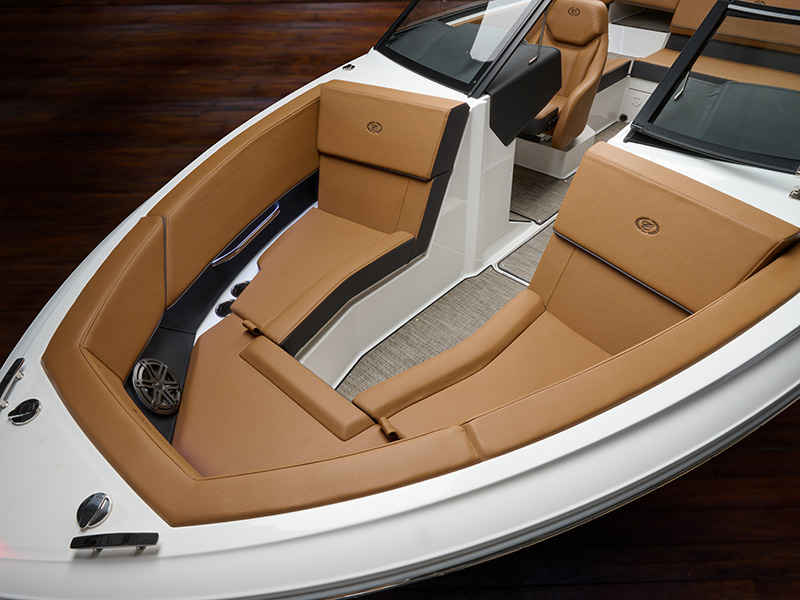

Spacious Bow Seating

The bow offers generous seating with room to stretch out, plus integrated storage below to keep gear organized and out of the way.

Harman Kardon Audio Systems

Cobalt partners with Harman Kardon to deliver premium marine audio with rich, balanced sound throughout the boat. Engineered with rugged, water-ready components, the system provides a refined listening experience from every seat.

Fresno Chil Vinyl

A premium marine vinyl designed to stay cooler in direct sunlight, improving comfort on hot days. Features moisture-resistant, antimicrobial construction for long-lasting durability.

Soft-Trac Positive Traction Mat

A soft, non-slip traction mat designed for secure footing and comfort throughout the cockpit and swim platform. Maintains grip when wet while remaining comfortable underfoot.

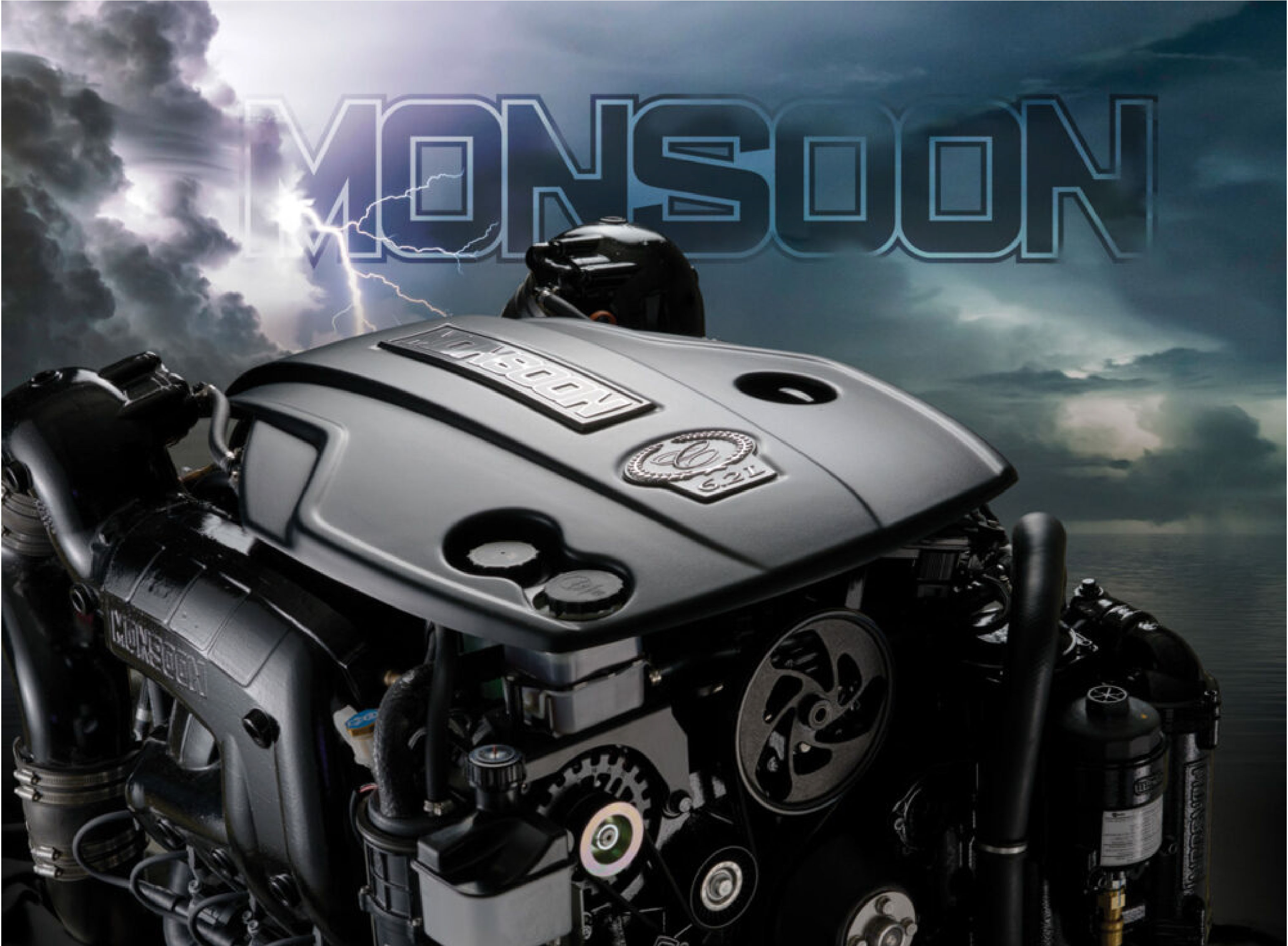

Monsoon Engines

Cobalt Monsoon engines are engineered for high performance, fuel efficiency, and long-term reliability. Built in partnership with GM Marine, these advanced marine engines use direct fuel injection to deliver cleaner combustion, improved throttle response, and more controlled power output. The result is a smoother, quieter ride with optimized fuel economy and dependable performance on the water.
