A New World Above and Below the Surface
- Day Cruising
- At Anchor In-Water Activity
- Overnight Aboard
- Large Bodies of Water
- No
Exterior

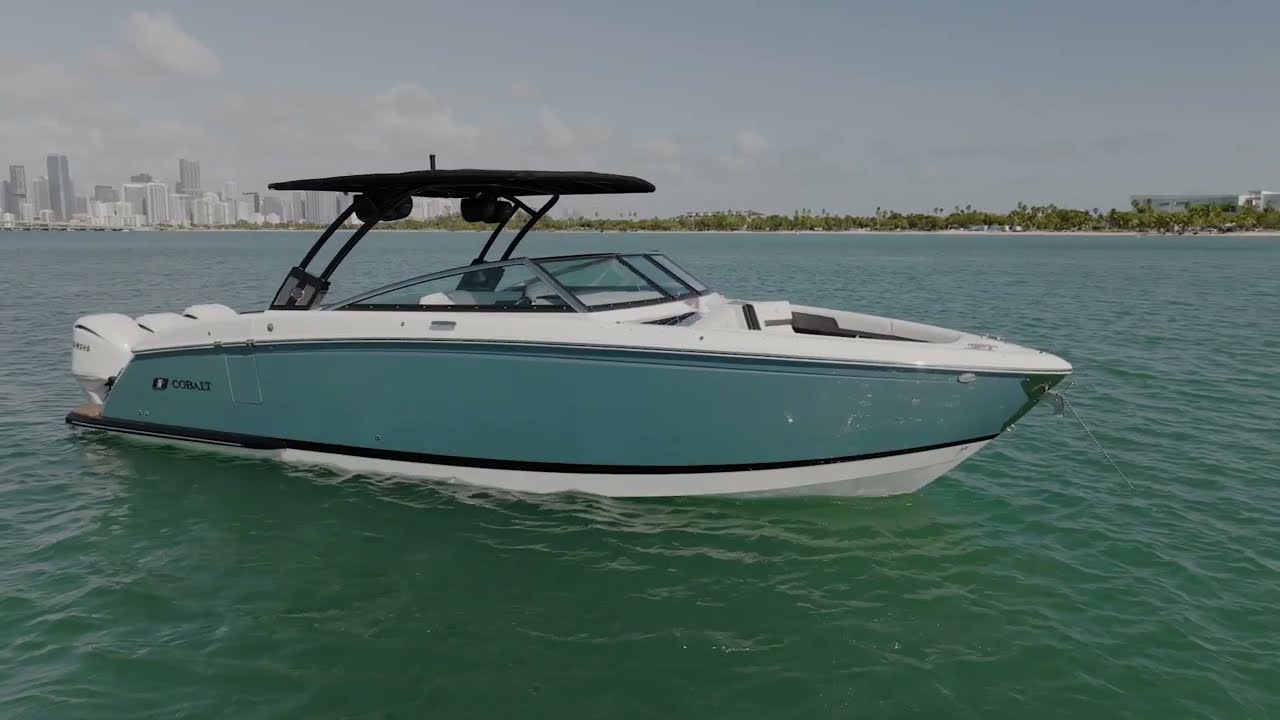

The R33 Outboard performs as beautifully as it looks, providing a truly exhilarating experience. Combining the versatility and maneuverability of its outboard motor with a twin engine, or Cobalt’s first 3-engine drive system with Triple 300s, the R33 offers up to a maximum, combined 900 horsepower. And for those who want to explore the beauty below the surface, the Yamaha Seascooter lets professional and recreational divers experience the water in unforgettable ways.
Another yacht-certified example of bigger being better and faster: Driven by up to three Yamaha or Mercury outboard engines generating up to 900 horsepower.
Experience starboard-side dock-level boarding with a structurally reinforced hull-side opening with a water-tight gasket seal, and a carefully matched door to blend perfectly into the hull.
Large aft storage allows for easy access and offers dedicated cradles for the optional Yamaha Sea Scooter.
Features & Innovations
Elevate Your Saltwater Boating with Cobalt’s Coastal Edition
Don’t settle for anything less than the best when it comes to saltwater boating. The Coastal Edition is designed with a comprehensive set of features specifically tailored for saltwater protection and durability. Boaters can navigate with confidence, knowing that the boat is equipped to handle the elements effectively. We’ve thought of every detail to provide you with the ultimate saltwater protection. Our Coastal Edition features the highest quality stainless steel components, watertight electrical connectors, innovative water management system, GPS mapping with coastal maps, carpet-free floor storage, redundant bilge pump system, and self-bailing cockpit (R6 models and above).Learn More...
Cobalt + Garmin
Harness the dependability, durability, and capability of Garmin at your helm with our feature rich, high-resolution glass cockpit. Here you'll find advanced navigation, networking and instrumentation technology combine with an intuitive interface to meet the needs of any captain. Get wider viewing angles and superior clarity on the touchscreen with full HD in-plane switching. Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping. With SmartMode™ everything is designed to give you quick, one-touch access to the information you need.Saltwater or fresh — no matter where you take to the water, you can trust Garmin marine technology to give you an unsurpassed level of confidence at the helm.
Three Engine Drive System
The Cobalt R33 Outboard performs as beautifully as it looks – and provides a truly exhilarating experience. Leaving nothing on the table to build something worthy of the classics that came before it, this outboard is Cobalt’s first-of-its-kind 3-engine drive system with Triple 300s offering a maximum, combined 900 horsepower. Combined with the versatility and maneuverability of the outboard motor, this boat brings it all together like never before. The R33 Outboard can be equipped with either triple or twin engines, and both Yamaha and Mercury motors are available.
Seakeeper
Yamaha Seascooter
For those who want to explore the beauty below the surface, Cobalt now offers Yamaha’s flagship Seascooter designed for professional and recreational divers, allowing you to spend more time in the water while exerting less energy. The full-featured Seascooter lets you shift between 3 rotational speeds and gets you cruising underwater up to 3.7mph. An automatic buoyancy system, designed for saltwater, allows you to concentrate on the scenery and not on your equipment.
Harman Kardon Audio System
Cobalt has partnered with Harman Kardon to bring their signature sound to the water. Guests can comfortably sit next to any speaker on the boat, guaranteeing a pleasant experience from every seat.. Includes marine ruggedized components and speakers that are classic yet timeless and can handle the harshest conditions–creating a top-tier audio system like none other in the marine industry.
Fresco Chil Vinyl
Finally, no more hot seats on darker colored vinyl while you’re out enjoying a full day of fun on the water. This anti-bacterial, anti-fungal, mildew-resistant, and sulfide stain-resistant fabric technology keeps your vinyl a full 15-20 degrees cooler than traditional vinyl even when it’s out in the sun.
Fender Clip Package
Cobalt stainless-steel fender clips are a quick mount system installed in the deck at the perfect fender position, so the lines are always set to optimum length. When docking, simply insert the pin into the fitting and you’re done.
SOF-TRAC POSITIVE TRACTION MAT
From the swim platform through the cockpit, dress up your new Cobalt with the Sof-Trac Positive Traction Mat. Gentle on swimsuits and wakeboards, you’ll maintain traction even when wet. See you local Cobalt dealer for details.
Interior
Aboard the R33, discover contemporary design and appointments inside the spacious interior’s larger bow and cockpit outfitted with dual Garmin Glass touchscreens. Plus, an optional Seakeeper gyroscopic stabilization system that eliminates 95% of boat roll for a smoother ride, a side-entry door for effortless boarding, and all-new marine audio system from Harman Kardon that delivers an immersive symphonic experience all make every journey more extraordinary.
Find a large, step-down exterior-cabin compartment with a sink console, pump-out Porta Potti, VacuFlush options, tinted skylight, and heat and air conditioning vented from the cabin HVAC.
Simply operated, offers seating on the sunpad at the swim platform, keeping you near the in-water activity on the platform. When not in use, folds down flat to become hidden in the sunpad.
Adjustable to 2 positions—face forward and face aft—with a stainless-steel grab handle for added security in rough water conditions and a heavy-duty steel support/hinge mechanism.
Technical Details
- Length Overall w/o Engines33' 4'' / 10.16 m
- Beam10' 6'' / 3.20 m
- Deadrise at Transom21 degrees / 21 degrees
- Fuel Capacity225 gal / 852 L
- Freshwater Capacity25 gal / 95 L
- Bridge Clearance (windshield only)6' 7'' / 2.00 m
- Bridge Clearance (Tower Up)9' 4'' / 2.84 m
- Bridge Clearance (Tower Down)7' 11'' / 2.41 m
- Bridge Clearance (w/ Hardtop & Radar)10' 4'' / 3.15 m
- Draft Drive Up, Twin Eng.22'' / .56 m
- Draft Drive Down, Twin Eng.28'' / .71 m
- Draft Drive Up, Triple Eng.22'' / .56 m
- Draft Drive Down, Triple Eng.36'' / .91 m
- Dry Weight, w/Twin Engines (options not included)11,193 lbs / 5077 kg
- Boat Certified CapacityYacht Certified
- Boat Certified Capacity w/gearYacht Certified
Mercury
- Twin 400 Verado V10, White ELEC w/Joystick - 400 hp (298 PkW)
- Twin 350 Verado V10, White ELEC w/Joystick - 350 hp
- Twin 400 Verado V10 Black ELEC w/Joystick - 400 hp (298 PkW)
- Twin 350 Verado V10, Black ELEC w/Joystick - 350 hp
- Twin 300 Verado, Black ELEC w/Joystick - 300 hp (224 PkW)
- Twin 300 Verado, White ELEC w/Joystick - 300 hp (224 PkW)
- Triple 300 Verado, White ELEC w/Joystick - 300 hp (224 PkW)
- Triple 300 Verado, Black ELEC w/Joystick - 300 hp (224 PkW)
Yamaha
- Twin F300 XCA, White INT w/Joystick - 300 hp (224 PkW)
- Triple F300 XCA, White INT w/Joystick - 300 hp (224 PkW)
Engine Enhancements (Optional)
- Engine Flush, Reverso-Triple *
- Engine Flush, Reverso-Twin *
Standard
- Stainless Steel Switches
- Steering Wheel, Black Leather/Stainless Steel
- USB/USB-C Receptacle Charger
- Hour Meter(s)
- Composite Helm Eyebrow, Custom Stitching
- Depth & Water Temp Gauge Pkg.
- Glass Cockpit, Dual Garmin 8610
- Compass, Digital
Optional
- Engine Flush, Reverso-Triple *
- Engine Flush, Reverso-Twin *
Standard
- Stereo Remote, Transom (Prem/Plat Sound)
- Stereo Remote, Dash - Detail
Stereo Remote, Dash
Control all stereo functions from the convenient dash mounted head unit.
- Sound System w 6 Spkrs.
- iPod/USB/MP3 Port - Detail
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
Optional
- Stereo Remote, Transom (Std. Sound)
- Satellite Radio System
- Premium Sound w/Transom Spkrs.-Hard Top
- Prem Sound w/Transom & Arch Spkrs-1 pr.
- Prem Sound w/Transom Spkrs.
- HK Sound w/Transom & Arch Spkrs-2 pr.
- HK Plat Sound w/Transom Spkrs. - Detail
HK Plat Sound w/Transom Spkrs.
- HK Plat Sound w/Transom Spkrs.-Hard Top - Detail
HK Plat Sound w/Transom Spkrs.-Hard Top
Standard
- Trash Receptacle
- Sink Console (head compartment) - Detail
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
- Helm Seat, Extra Wide
- Ice Chest, Bow
- Seating Varadense Comfort
- Head w/Pump Out Porta Potti - Detail
Head w/Pump Out Porta Potti
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
- Cooler, 36 qt. (cockpit seat only)
- Dual Sundeck Convertible Lounger
- Bench Seat Storage
- Bow Walk-Thru Door
Optional
- Wireless Phone Chargers, w/Holder
- TV Smart 22 inch, 12v (Cabin)
- Throw Pillows, Weighted (4) - Detail
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Teak Floor, Head & Cabin
- Throw Pillows, Weighted (10) - Detail
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Teak Floor, Bow & Cockpit
- Stainless Steel Foot Tread (helm only)
- Sof-Trac Mat (helm footrest)
- Sof-Trac Mat (head, cabin)
- Sof-Trac Mat (bow, cockpit)
- Interior Trim Pkg., Wood - w/Galley
- Interior Trim Pkg., Wood - w/Seat
- LED Interior Accent Lighting (RGB) - Detail
LED Interior Accent Lighting (RGB)
(Shown in Cobalt model R6)
- Helm Seat, Electric
- Head w/VacuFlush, Macerator - Detail
Head w/VacuFlush, Macerator
- Gray Water System
- Head w/VacuFlush - Detail
Head w/VacuFlush
- Galley, Cockpit (replaces seat)
- Footrest, Helm (Fold-Down)
- Floor Covering, Sea Grass (helm footrest
- Floor Covering, Sea Grass (head, cabin)
- Floor Covering, Sea Grass (bow, cockpit)
- Dinette Table, Solid Teak
- Electric Stove Top (req. Galley)
- Dinette Table w/Bow & Cockpit Receptacle
- Bow Center Cushion Insert
- Bow Table (additional)
- Cooler, Soft-Side 37 qt.
- Air Conditioning, 12v (Head/Cabin)
- Air Compressor w/Holder - Detail
Air Compressor w/Holder
12v power inflator for water toys, with a dedicated holder.
Standard
- Boarding Ladder, Stbd.
- Windshield, Stainless Steel
- Transhield Shipping Cover
- Sky Light (Head Compartment)
- Motorbox Actuator
- Graphics, Molded-In Gelcoat
- Extended Running Surface
- COBALT Lettering, Chrome Backlit
- Cleats (Bow, Midship, Stern)
- Bow Scuff Plate, Stainless Steel - Detail
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
- Anchor Locker
Optional
- Underwater Lighting - Detail
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model R8 Surf.
- Transom Shower (cold water)
- Teak Swim Platform
- Swim Platform Transom Lighting - Detail
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends. Shown on model 242 with standard swim platform.
- Sof-Trac Mat, Swim Platform
- Seascooters, Yamaha (2)
- Flagpole w/Flag - Detail
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag.
- Fender Clips w/Line (6) - Detail
Fender Clips w/Line (6)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- COBALT Lettering, Satin White (exterior)
- COBALT Lettering, Satin Black (exterior) - Detail
COBALT Lettering, Satin Black (exterior)
- Boarding Door, Cockpit
- Arch, Elec. Fwd. Folding w/Rotating Sunshade - Detail
Arch, Elec. Fwd. Folding w/Rotating Sunshade
- Arch w/Hard Top/Elec Retractable Awning
- Arch w/Hard Top
Optional
- Shade Sail, Bow
- Shade Sail, Aft
- Mooring Cover - Detail
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
- Cockpit Tonneau Cover - Detail
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
- Bow Tonneau Cover - Detail
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
Standard
- Coastal Edition
- Stainless Steel Windshield Braces - Detail
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
- Kevlar Reinforced Hull
- Ignition Safety Switch - Detail
Ignition Safety Switch
Standard engine ignition safety switch with belt clip.
- Fire Extinguisher(s), Manual
- Fiberglass Stringer System
- Composite Seat Bases
- Composite Transom
- Fiberglass Cockpit Liner
- Composite Floor
- Circuit Breaker Protected Elec System - Detail
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
- Battery Switch, Dual w/ACR - Detail
Battery Switch, Dual w/ACR
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
- 10/5/3 Year Warranty Protection
Optional
- Bonding System w/Sacrificial Anodes *
- Windlass, All Chain w/Anchor - Detail
Windlass, All Chain w/Anchor
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 80 feet of chain and plaited line. Installation may vary depending on specific boat model.
- Trim Tabs w/Indicators, w/o Autoglide - Detail
Trim Tabs w/Indicators, w/o Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
- Trim Tabs w/Indicators w/Autoglide - Detail
Trim Tabs w/Indicators w/Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
- Tool Kit - Detail
Tool Kit
- Shorepower, 220v
- Gyroscope, Seakeeper 2 *
- Rearview Mirror, Roswell w/Custom Cover
- Shorepower, 110v
- Battery Maintainer/Charger, 220v - Detail
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Battery Maintainer/Charger, 110v - Detail
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
