R35
R35

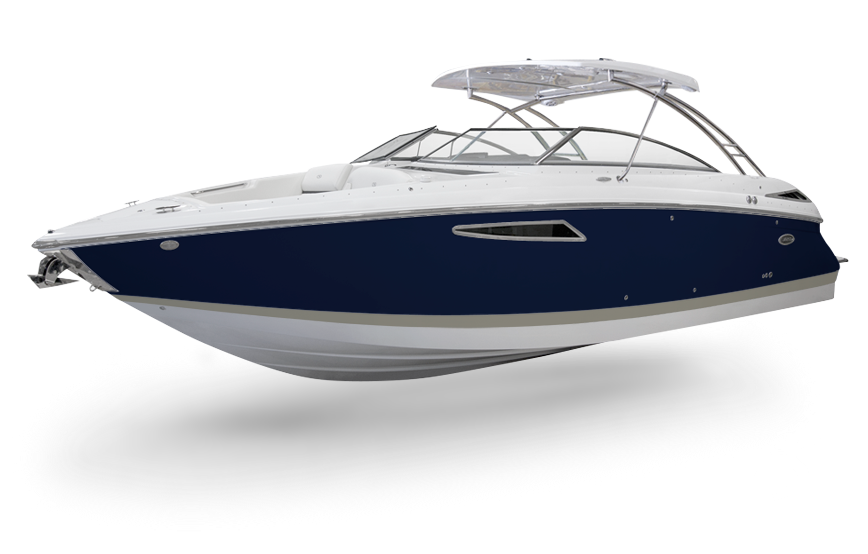

The largest boat in the R Series, the R35 is a hybrid open-bow day boat designed with the leathered luxury of a well-appointed mid-cabin and the unmatched performance you expect from a Cobalt. Simultaneously snug and expansive, the cabin features a nine-foot sofa that converts to sleep two people. The port-side head doubles as a shower seat, while the cabin comes equipped with both AC and heat, a 32″ HDTV, a DVD player, a Playstation hookup.
LOA:
Beam:
Seating Capacity:
Dry Weight:
R35 Music Video
Technical Details
| Length Overall w/Swim Platform | 34' 9'' | 10.59 m |
| Beam | 10' 7'' | 3.23 m |
| Interior Cockpit Width | 9' 0'' | 2.74 m |
| Deadrise at Transom | 22º | 22º |
| Fuel Capacity | 158 gal. | 598 L |
| Freshwater Capacity | 27 gal | 102 L |
| Holding Tank Capacity | 28 gal. | 106 L |
| Bridge Clearance w/Arch | 8' 10'' | 2.69 m |
| Draft Drive Up | 24'' | .61 m |
| Draft Drive Down | 35'' | .90 m |
| Dry Weight | 12300 lbs. | 5579 kg |
| Boat Certified Capacity | Yacht Certified | |
| Boat Certified Capacity w/gear | Yacht Certified |
R35 Volvo Penta Power Selections
- Twin V8-300CE-G DP - 300 hp (221 PkW)
- Twin V8-350CE-G DP - 350 hp (261 Pkw)
- Twin V8-380CE DP - 380 hp (283 PkW)
- Twin V8-430CE DP - 430 hp (321 PkW)
R35 MerCruiser Power Selections
- Twin 6.2 L MPI ECT-300 B3 DTS - 300 hp (221 PkW)
- Twin 6.2 L MPI ECT-350 B3 DTS - 350 hp (261 PkW)
- Twin 8.2 Mag ECT B3X DTS - 380 hp (283 PkW)
- Twin 8.2 Mag HO ECT B3X DTS - 430 hp (321 PkW)
R35 Engine Enhancements - Standard
- Active Trim, Merc-twin
- DTS (Merc)
- EVC w/PTA & Cruise (Volvo)
- Trip Computer (Volvo EVC)
R35 Engine Enhancements - Optional
- Anti-Corrosion System (Twin Vol 300hp)
- Axius Premier (DTS)-Merc
- Joystick Sterndrive (EVC)-Volvo
- Ocean-X (Volvo)
- Seacore (Merc)
R35 Cockpit Configuration - Standard
- L Lounge
R35 Dash and Instrumentation - Standard
- Accessory Power Plug - 12 Volt Detail
- Compass, Digital
- Composite Helm Eyebrow, Custom Stitching
- Depth & Water/Air Temp Gauge Pkg.
- Glass Cockpit, Dual Garmin 7607
- Gloss Black Dash Console
- Hour Meter(s)
- Premium Black Leather/SS Steering Wheel
- Stainless Steel Switches
R35 Entertainment System - Standard
- Custom Acoustic Speaker Covers
- iPod/USB/MP3 Port
- Premium Sound w/Transom Spkrs.
- Stereo Remote, Dash Detailx
Stereo Remote, Dash
Dash mounted control of the stereo from the helm station while the main head unit is securely mounted in a lockable compartment in the passenger seat area.
- Stereo Remote, Transom
R35 Interior - Standard
- Aft Sunpad w/Adjustable Backrest
- Aft Sunpad w/Walk-Thru Transom
- Aft Walk-Thru Carpet
- Air Compressor w/Holder
- Bench Seat Storage
- Bow Walk-Thru Door
- Cabin Door w/Sliding Screen & Window
- Carpet, 40 oz., Snap-In w/Neoprene Back
- Dinette Table w/Bow,CP & Cabin Recept.
- Galley, Cockpit w/Sink
- Head Compartment w/Shower
- Head w/VacuFlush
- Helm Seat, Double-Wide
- Helm Seat, Flip-Up
- Passenger Seat Flip Backrest System
- Removable Cockpit Carpet
- Seating Varadense Comfort
- Shore Power Kit-110 Volt w/battery charger
- Sink Console (head compartment) Detailx
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
- Throw Pillows, cabin
R35 Exterior - Standard
- Anchor Locker
- Arch, SS w/Hard Top & Elec Sureshade
- Bow Scuff Plate, Stainless Steel Detailx
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
- Extended Running Surface
- Fender Clips w/Line (6) Detailx
Fender Clips w/Line (6)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- Hideaway Cockpit Dinette Table
- Midship Cleats
- Motorbox Actuator
- Panoramic Hull Windows
- Ski Tow Eye, Stainless Steel
- Sky Lights (1-Head, 1-Cabin)
- SS Tubular Platform Perimeter Rail
- Stainless Steel Engine Vents
- Stainless Top Trim Windshield
- Swim Platform, Hydraulic w/Flip-Step
- Transhield Shipping Cover
- Transom Storage Locker(s)
R35 Structure and Safety - Standard
- 10/5/3 Year Warranty Protection
- Battery Switch, Dual w/ACR Detailx
Battery Switch, Dual w/ACR
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
- Circuit Breaker Protected Elec System Detailx
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
- Composite Floor
- Composite Transom
- Fiberglass Cockpit Liner
- Fiberglass Stringer System
- Fire Extinguisher(s), Manual
- Hot Water Heater w/Exchanger (110 Volt)
- Ignition Safety Switch Detail
- Kevlar Reinforced Hull
- Stainless Steel Windshield Braces Detailx
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
- Through Prop Exhaust
- Trim Tabs w/Indicators, w/o Autoglide
R35 Canvas - Optional
- Bow Tonneau Cover Detailx
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
- Cockpit Tonneau Cover Detailx
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
- Mooring Cover Detailx
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
- Shade Sail, Bow
R35 Dash and Instrumentation - Optional
- Glass Cockpit w/12'' Dual Screen Upgrade
- VHF Radio w/Antenna
R35 Entertainment System - Optional
- Cabin Entertainment Package (TV/DVD)
- Cabin Entertainment Pkg., CE (no TV)
- Cable TV Connection
- Plat Sound w/Transom Spkrs.
- Satellite Radio System
- TV Antenna & Cable Hook-Up
R35 Interior - Optional
- Aft Walk-Thru Gate
- Air Conditioning/Heating
- Bow Center Cushion Insert
- Cabin Custom Wood Floor
- Cockpit Heater
- Floor Covering, Sea Grass Detailx
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
- Gray Water System
- Head w/VacuFlush, Macerator
- LED Interior Accent Lighting (RGB)
- Refrigerator (cockpit)
- Refrigerator/Microwave Pkg., cockpit
- Remote Courtesy Lights w/key fob Detail
- Shore Power Kit-220 Volt w/battery charger
- Sof-Trac Mat, Cockpit
- Stainless Steel Foot Tread (helm only) Detailx
Stainless Steel Foot Tread (helm only)
Stainless steel with rubber tread, the footrest instantly becomes an interior detail worth bragging about. Size and shape will vary slightly for custom fit to specific boat model.
- Throw Pillows, Weighted (10) Detailx
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (4) Detail
R35 Exterior - Optional
- COBALT Oval Logo, Recessed
- Color-Accented Hard Top Headliner
- Docking Lights-Stainless Steel Detail
- Flagpole w/Flag Detailx
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag. Shown on model 232 with arch.
- Sof-Trac Mat, Swim Platform
- Swim Platform Transom Lighting Detailx
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends. Shown on model 242 with standard swim platform.
- Teak Accent Package
- Transom Shower Detail
- Transom Tilt Switches (twin) Detailx
Transom Tilt Switches (twin)
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
- Underwater Lighting Detailx
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model 302. Swim platform transom lighting also shown.
R35 Structure and Safety - Optional
- Captain's Call Exhaust-twin
- Captain's Call Plus (w/Mufflers)-Twin Engines
- CE Req. w/Auto Fire Ext. & Generator
- CE Requirements w/Auto Fire Extinguisher
- Fire Extinguisher, Automatic System Detailx
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
- Fire Extinguisher, Automatic System (generator) Detailx
Fire Extinguisher, Automatic System (generator)
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
- Generator (5kw-110v) w/Sound Shield
- Generator (5kw-220v) w/Sound Shield
- Inverter, 1800w (1 outlet)
- Tool Kit Detail
- Trim Tabs w/Indicators w/Autoglide
- Windlass, All Chain w/Anchor Detailx
Windlass, All Chain w/Anchor
Recessed anchor windlass is mounted below decks in the anchor locker. Cobalt uses a through hull mounted hause pipe made of stainless steel, and a stainless delta style anchor with 125 feet of chain and plaited line. Installation may vary depending on specific boat model.
Download PDF
Only A Cobalt
Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:
- Patented Swim Step for easy water access
- Maximum interior space
- 16-layer hand-laid fiberglass at keel
- Deep-V hull design for smooth ride
- Double French-stitched interiors
- Molded-in gelcoat graphics on exterior
- Extended running surface
