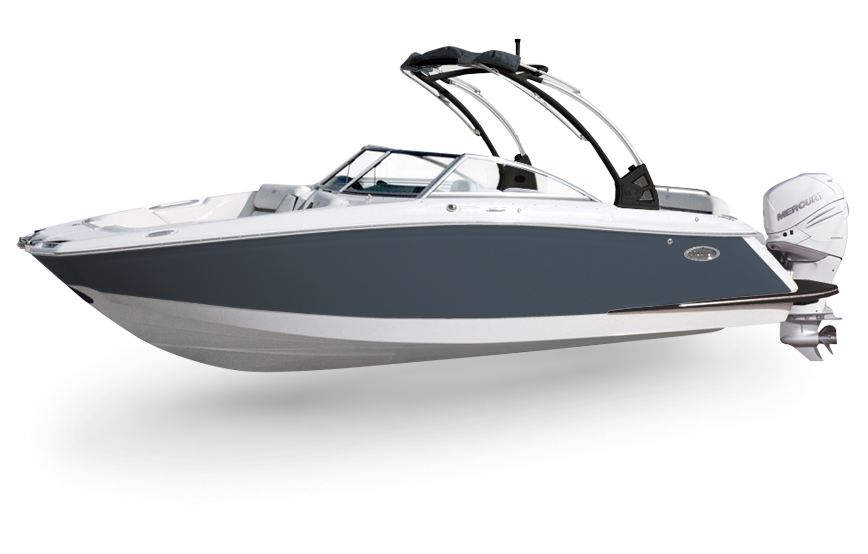

23SC
23SC
The Cobalt 23SC is contoured for accessibility, but still features all the expected Cobalt standards: quickness to plane, smooth ride, stability in turns. Plus, the power of an outboard means solid speed and performance. On the inside, there’s a multi-use sun pad and adjustable backrest, plush seating arrangements, well-placed storage compartments and impeccable amenities. The all-composite transom, all-fiberglass stringer system, cockpit liner deck, Kevlar® reinforced hull and stainless steel windshield braces combine to make the 23SC a strong boating choice, and an experience you just can’t live without.

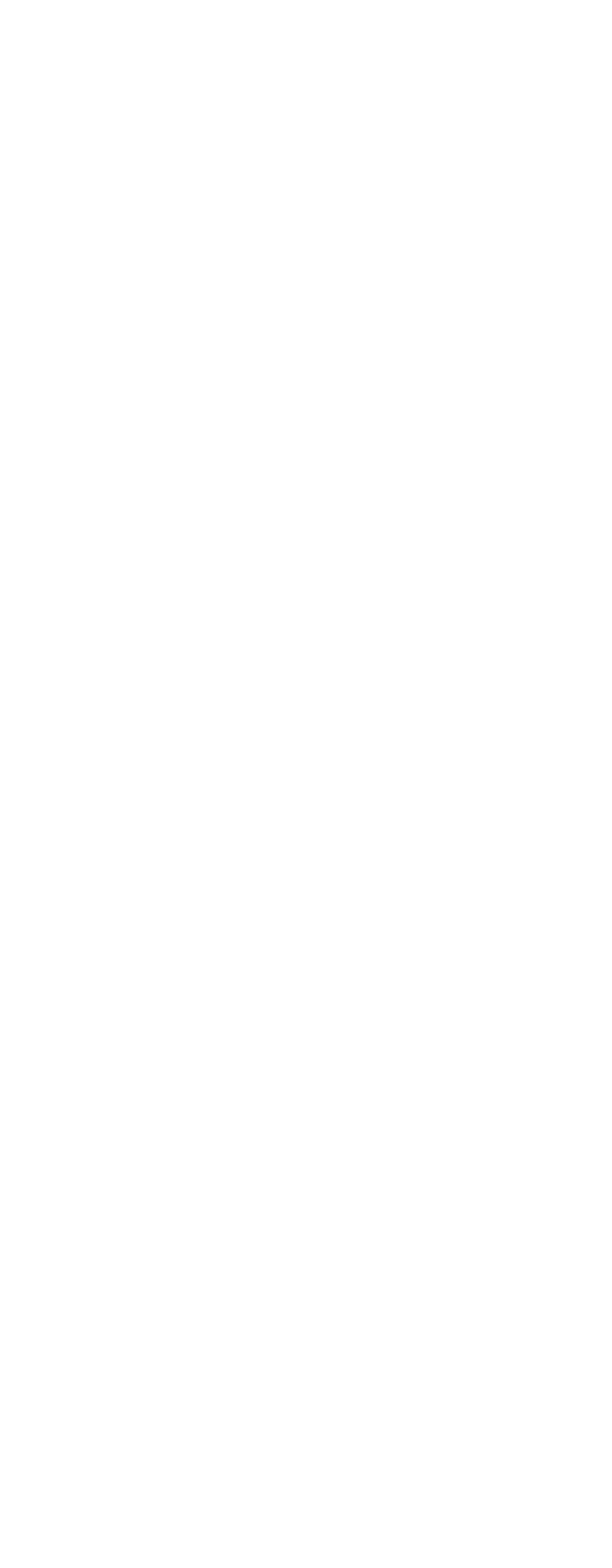

Design Your Dream 23SCLOA:
Beam:
Seating Capacity:
Dry Weight:
23SC Music Video
Technical Details
| Length Overall w/Swim Platform | 23' 2'' | 7.06 m |
| Beam | 8' 6'' | 2.59 m |
| Interior Cockpit Width | 87'' | 2.21 m |
| Deadrise at Transom | 20º | 20º |
| Fuel Capacity | 59 gal | 223 L |
| Freshwater Capacity | 10 gal | 37.8 L |
| Holding Tank Capacity | 10 gal | 37.8 L |
| Bridge Clearance w/o Bimini | 4' 11'' | 1.50 m |
| Bridge Clearance w/Arch | 8' 1'' | 2.46 m |
| Draft Drive Up | 20'' | .50 m |
| Draft Drive Down | 38'' | .97 m |
| Dry Weight (varies with options) | 4200 lbs. | 1905 Kg |
| Boat Certified Capacity | 12 persons | 12 persons |
| Boat Certified Capacity w/gear | 1595 lbs. | 732 Kg |
23SC Mercury Power Selections
- 200 Verado w/PAS - 200 hp (149 PkW)
- 225 Verado w/PAS - 225 hp (168 PkW)
- 250 Verado w/PAS - 250 hp (186 PkW)
- 300 Verado w/PAS - 300 hp (224 PkW)
23SC Yamaha Power Selections
- F200 XCA, D.E.C. w/Sea Star PAS - 200 hp (149 PkW)
- F250 XCA, D.E.C. w/Sea Star PAS - 250 hp (186 PkW)
- F300 XCA, D.E.C. w/Sea Star PAS - 300 hp (224 PkW)
23SC Engine Enhancements - Optional
- Merc, Cold Fusion White
- Yamaha, Pearlescent White (300/350hp) Detail
23SC Cockpit Configuration - Standard
- Cockpit Seat, Stbd.
23SC Dash and Instrumentation - Standard
- Accessory Power Plug - 12 Volt Detail
- Black Leather/SS Steering Wheel
- Color-Matched Aluminum Dash Panels
- Composite Helm Eyebrow, Custom Stitching
- Depth & Water/Air Temp Gauge Pkg.
- Gloss Black Dash Console w/SS Accents
- GPS, Dual Garmin 743
- Hour Meter(s)
- Stainless Steel Switches
23SC Entertainment System - Standard
- iPod/USB/MP3 Port Detailx
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
- Sound System, Bluetooth, w/6 Spkrs.
- Stereo Remote, Dash Detailx
Stereo Remote, Dash
Dash mounted control of the stereo from the helm station while the main head unit is securely mounted in a lockable compartment in the passenger seat area.
- Stereo Remote, Transom (Prem. Sound)
23SC Interior - Standard
- Aft Sunpad w/Adjustable Backrest
- Aft Walk-Thru Carpet
- Bench Seat Storage
- Bow Walk-Thru Door
- Carpet, 40 oz., Snap-In w/Neoprene Back
- Head w/Porta Potti Detailx
Head w/Porta Potti
Easily accessible, upholstered head compartment. Shown with removable Porta Potti.
- Helm Seat, Double-Wide
- Passenger Seat Flip Backrest System
- Removable Bow & Cockpit Carpet
- Seating Varadense Comfort
- Trash Receptacle, 28 gal
- Walk-Thru Transom
23SC Exterior - Standard
- Anchor Locker
- Bow Boarding Ladder, SS
- Bow Scuff Plate, Stainless Steel Detailx
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
- Extended Running Surface
- Fender Clips w/Line (4) Detailx
Fender Clips w/Line (4)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- Graphics, Molded-In Gelcoat
- Midship Cleats
- SS Tubular Platform Perimeter Rail
- Stainless Top Trim Windshield
- Swim Step, Stbd.
- Transhield Shipping Cover
23SC Structure and Safety - Standard
- 10/5/3 Year Warranty Protection
- Battery Switch, Single Detailx
Battery Switch, Single
Battery switch disconnects the single engine battery from entire vessel, with the exception of the bilge pump and stereo memory.
- Circuit Breaker Protected Elec System Detailx
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
- Composite Floor
- Composite Transom
- Fiberglass Cockpit Liner
- Fiberglass Stringer System
- Fire Extinguisher(s), Manual
- Ignition Safety Switch Detail
- Kevlar Reinforced Hull
- Stainless Steel Windshield Braces Detailx
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
- Trim Tabs w/Indicators, w/o Autoglide Detailx
Trim Tabs w/Indicators, w/o Autoglide
Fine tune your ride with trim tabs. Great for load leveling or extreme low speed cruising.
23SC Canvas - Optional
- Bimini, Premium Detail
- Bimini, Premium Easy-Fold Detail
- Bow Tonneau Cover Detailx
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
- Cockpit Tonneau Cover Detailx
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
- Mooring Cover Detailx
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
23SC Dash and Instrumentation - Optional
- XM Weather Detailx
XM Weather
XM Weather provides real-time, high-resolution animated weather data directly to the Cobalt Glass Cockpit touch screens. View weather conditions across the continental U.S. and 100 miles into U.S. coastal waters, and zoom in on a particular region.
23SC Entertainment System - Optional
- Plat Sound System (transom spkrs. n/a)
- Plat Sound System w/Arch Spkrs-2 pr.
- Prem Sound System w/Arch Spkrs-1 pr. Detailx
Prem Sound System w/Arch Spkrs-1 pr.
Samson tower speakers are equipped with a plug and play receptacle providing multi-directional sound disbursement and they are removable with a quick release system for storage.
- Premium Sound System
- Satellite Radio System
- Speaker Covers, Arch (Premium Sound) Detail
- Stereo Remote, Transom (Std. Sound)
23SC Interior - Optional
- Grey Water System
- Air Compressor w/Holder Detail
- Bow Filler Cushions, Port & Stbd. Detail
- Dinette Table w/cockpit receptacle Detail
- Floor Covering, Sea Grass Detailx
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
- Head w/Electric Porcelain Toilet Detailx
Head w/Electric Porcelain Toilet
The upgraded porcelain head with holding tank and dockside receptacle.
- Head w/Electric Porcelain, Macerator Detailx
Head w/Electric Porcelain, Macerator
The Electric Porcelain head with macerator provides for overboard discharge. Local restrictions and laws apply.
- Head w/Pump Out Porta Potti Detailx
Head w/Pump Out Porta Potti
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
- Head w/Pump Out Porta-Potti, Macerator Detailx
Head w/Pump Out Porta-Potti, Macerator
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
- LED Interior Accent Lighting (RGB) Detail
- Remote Courtesy Lights w/key fob Detail
- Sink Console (head compartment) Detailx
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
- Sof-Trac Mat, Cockpit Detailx
Sof-Trac Mat, Cockpit
Sof-Trac mat combines an aggressive non-skid traction with the soft feel of a cushioned pad. Durable and stylish, the sof-trac mat is a water sport enthusiast favorite. (Shown in the Cobalt R4 Outboard.)
- Stainless Steel Foot Tread (helm only) Detailx
Stainless Steel Foot Tread (helm only)
Stainless steel with rubber tread, the footrest instantly becomes an interior detail worth bragging about. Size and shape will vary slightly for custom fit to specific boat model.
- Throw Pillows, Weighted (10) Detailx
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (4) Detailx
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Dinette Table, Solid Teak Detail
23SC Exterior - Optional
- Arch Elec, Alum Folding w/Bimini Detail
- Arch, Alum, Folding w/Bimini Detail
- Boarding Ladder, Port
- Bow & Transom Shower Pkg. Detail
- COBALT Lettering, Satin Black (exterior) Detail
- COBALT Oval Logo, Recessed Detailx
COBALT Oval Logo, Recessed
The subdued style of the oval logo recesses the Cobalt logo and brand for an elegant and traditional look. It is integrated in to the hull side for reduced potential for dockside damage.
- Flagpole w/Flag Detail
- Portal Light (1 in Head Compartment) Detailx
Portal Light (1 in Head Compartment)
Stainless steel opening portal light with screen located at port side head compartment provides adequate ventilation and ambient sunlight.
- Ski Tow
- Sof-Trac Mat, Flip-Down Swim Step
- Sport Tower w/Sunshade Detail
- Swim Platform Transom Lighting Detailx
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends. Shown on model 242 with standard swim platform.
- Underwater Lighting Detail
- Wakeboard Racks, Elite (Alum) Detail
- Wakeboard Racks, Triton Detail
- Roswell Board Rack Covers
23SC Structure and Safety - Optional
- Battery Maintainer/Charger, 110v Detailx
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Battery Maintainer/Charger, 220v Detailx
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Battery Switch, Dual w/ACR (required) Detailx
Battery Switch, Dual w/ACR (required)
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
- Rearview Mirror, PTM w/Custom Cover Detailx
Rearview Mirror, PTM w/Custom Cover
The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.
- Tool Kit Detail
Download PDF

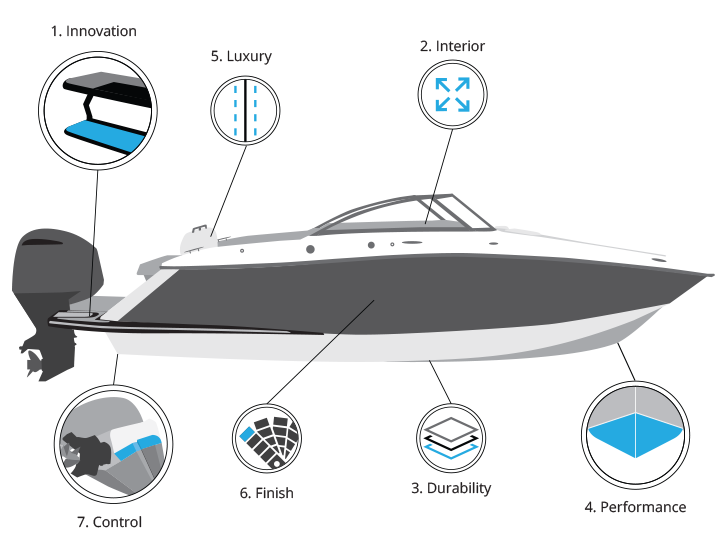

Experience Extraordinary
Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:
- Patented Swim Step for easy water access
- Maximum interior space
- Hand-laid fiberglass at keel
- Deep-V hull design for smooth ride
- Double French-stitched interiors
- Molded-in gelcoat graphics on exterior
