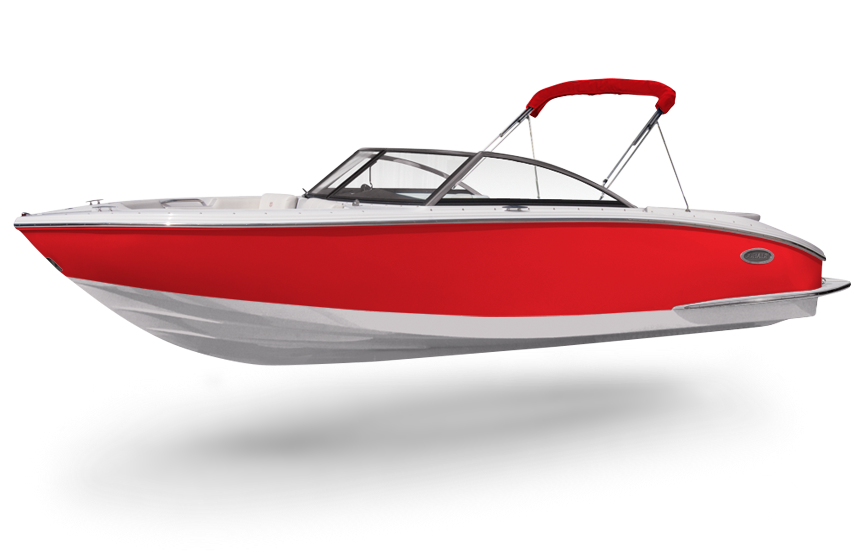

CS22
CS22
Built for those who don’t want to compromise luxury or performance, the CS22 is a model of efficient design. The detailed interior includes a wide interior beam, a walk-thru transom, Cobalt-branded coaming pads, colored stitching details and digital helm instrumentation. But perhaps best of all? A JL Audio six-speaker sound system with Bluetooth capability. Unplug with family and friends – and the CS22 – for a perfect day on the water.
Design Your Dream CS22LOA:
Beam:
Seating Capacity:
Dry Weight:
Zenith Tower
Cobalt’s innovative Zenith Tower, with fold-out bimini included, manually folds to a lower position to aid in garage storage. The simple, clean design is classic Cobalt. Offered in both black and white, the Zenith Tower has easier to grip rotating turn handles and cam-locks for locking the tower in the up-position. New board rack adapters integrate well with the styling of the tower vs. pipe-clamp style mounts.
Technical Details
| Length Overall w/Swim Platform | 22' 6'' | 6.86 m |
| Beam | 8' 6'' | 2.59 m |
| Interior Cockpit Width | 92'' | 2.34 m |
| Deadrise at Transom | 20º | 20º |
| Fuel Capacity | 52 gal. | 197 L |
| Bridge Clearance w/o Bimini | 3' 11'' | 1.19 m |
| Bridge Clearance w/Arch | 6' 10'' | 2.08 m |
| Draft Drive Up | 24'' | .61 m |
| Draft Drive Down | 37'' | .94 m |
| Dry Weight (varies with options) | 3400 lbs. | 1542 kg |
| Boat Certified Capacity | 11 persons | 11 persons |
| Boat Certified Capacity w/gear | 1595 lbs. | 723 kg |
CS22 Volvo Penta Power Selections
- V6-250C-G DP - 240 hp (149 PkW)
- V6-250C-G SX - 240 hp (179 PkW)
- V6-250G DP (non-cat) - 240 hp (179 PkW)
- V6-250G SX (non-cat) - 240 hp (179 PkW)
- V6-280C-G DP - 280 hp (209 PkW)
- V8-300C-G DP - 300 hp (224 PkW)
- V8-300CE-G DP - 300 hp (224 PkW)
- V8-350C-G DP - 350 hp (261 PkW)
- V8-350CE-G DP - 350 hp (261 PkW)
CS22 MerCruiser Power Selections
- 4.5 L MPI ECT-250 Alpha DTS - 250 hp (186 PkW)
- 4.5 L MPI ECT-250 B3 DTS - 250 hp (186 PkW)
- 6.2 L MPI ECT-300 B3 DTS - 300 hp (224 PkW)
- 6.2 L MPI ECT-350 B3 DTS - 350 hp (261 PkW)
CS22 Engine Enhancements - Optional
- Active Trim, Merc (requires DTS) Detailx
Active Trim, Merc (requires DTS)
Active Trim provides instant automatic trim for compatible outboards and sterndrives. This intuitive, hands-free system continually adjusts engine trim for changes in operating conditions to improve performance, increase fuel economy and optimize cruising speed at the touch of a button.
- Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
- EVC (Volvo) cat engines only
- Ocean-X (Volvo) Detailx
Ocean-X (Volvo)
Ocean X (Salt Water Ready) Duoprop Outdrive Packages with Fresh Water Cooling Protected by a revolutionary titanium-ceramic coating and new sensor technology, OceanX is Volvo Penta's answer to the corrosive effects of salt water.
- Seacore (Merc) Detailx
Seacore (Merc)
MerCruiser SeaCore, a comprehensive corrosion protection system for the engines, transoms and lower units operated in saltwater.
- Tow Mode (Volvo EVC)

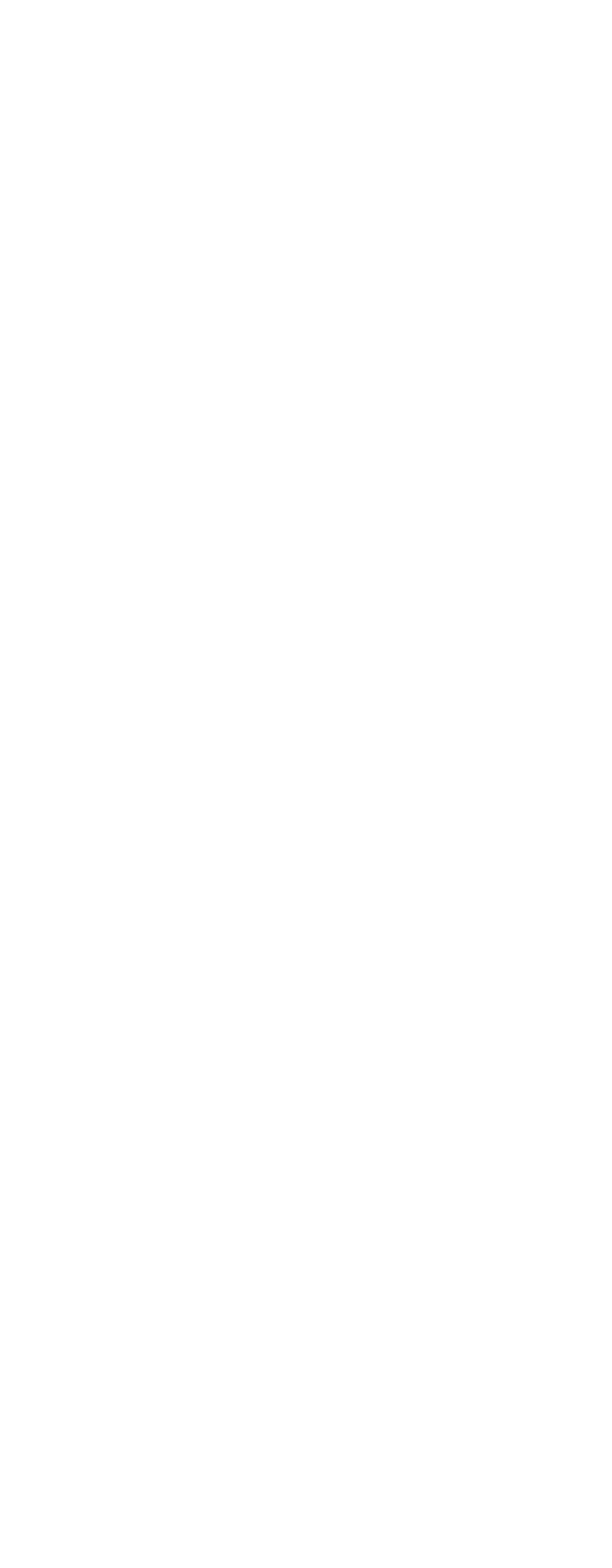

CS22 Cockpit Configuration - Standard
- L Lounge
CS22 Dash and Instrumentation - Standard
- Accessory Power Plug - 12 Volt Detail
- Composite Helm Eyebrow, Custom Stitching
- Depth & Water/Air Temp Gauge Pkg.
- Etched Stainless Steel Instrument Panel
- Hour Meter(s)
- Leather Steering Wheel w/Auto Leveling Hub
- Stainless Steel Switches
CS22 Entertainment System - Standard
- iPod/USB/MP3 Port Detailx
iPod/USB/MP3 Port
Includes USB-A and USB-C connections. Multiple power ports throughout, and one power/data port at helm.
- Sound System, Bluetooth, w/6 Spkrs.
- Stereo Remote, Dash Detailx
Stereo Remote, Dash
Dash mounted control of the stereo from the helm station while the main head unit is securely mounted in a lockable compartment in the passenger seat area.
- Stereo Remote, Transom (Prem. Sound)
CS22 Interior - Standard
- Aft Facing Rumble Seat
- Aft Sunpad w/Walk-Thru Transom
- Bow Walk-Thru Door
- Carpet, 40 oz., Snap-In w/Neoprene Back
- Helm Seat, Flip-Up
- Removable Bow & Cockpit Carpet
- Seating Varadense Comfort
CS22 Exterior - Standard
- Anchor Locker
- Bow Scuff Plate, Stainless Steel Detailx
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
- COBALT Oval Logo, Recessed Detailx
COBALT Oval Logo, Recessed
The subdued style of the oval logo recesses the Cobalt logo and brand for an elegant and traditional look. It is integrated in to the hull side for reduced potential for dockside damage.
- Extended Running Surface
- Graphics, Molded-In Gelcoat
- Midship Cleats
- Ski Tow Eye, Stainless Steel
- Stainless Top Trim Windshield
- Transhield Shipping Cover
CS22 Structure and Safety - Standard
- 10/5/3 Year Warranty Protection
- Battery Switch, Single Detailx
Battery Switch, Single
Battery switch disconnects the single engine battery from entire vessel, with the exception of the bilge pump and stereo memory.
- Circuit Breaker Protected Elec System Detailx
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
- Composite Floor
- Composite Seat Bases
- Composite Transom
- Fiberglass Cockpit Liner
- Fiberglass Stringer System
- Fire Extinguisher(s), Manual
- Ignition Safety Switch Detail
- Kevlar Reinforced Hull
- Stainless Steel Windshield Braces Detailx
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
- Through Prop Exhaust
CS22 Canvas - Optional
- Bimini Detail
- Bow Tonneau Cover Detailx
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
- Cockpit Tonneau Cover Detailx
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.
- Mooring Cover Detailx
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
CS22 Dash and Instrumentation - Optional
- Compass
- GPS, Garmin 743
- Rudder Indicator, Merc
- Rudder Indicator, Volvo
- XM Weather Detailx
XM Weather
XM Weather provides real-time, high-resolution animated weather data directly to the Cobalt Glass Cockpit touch screens. View weather conditions across the continental U.S. and 100 miles into U.S. coastal waters, and zoom in on a particular region.
CS22 Entertainment System - Optional
- Prem Sound System w/Arch Spkrs-1 pr.
- Premium Sound System
- Satellite Radio System
- Speaker Covers, Arch (Premium Sound) Detail
- Stereo Remote, Transom (Std. Sound)
CS22 Interior - Optional
- Aft Filler Cushion, Stbd. Detail
- Air Compressor w/Holder Detail
- Bow Center Cushion Insert
- Dinette Table w/cockpit receptacle Detail
- Floor Covering, Sea Grass Detailx
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant. Available colors: Raw Umber, Straw, and Sliver Ash.
- LED Interior Accent Lighting (RGB) Detail
- Remote Courtesy Lights w/key fob Detail
- Sof-Trac Mat, Cockpit Detailx
Sof-Trac Mat, Cockpit
Sof-Trac mat combines an aggressive non-skid traction with the soft feel of a cushioned pad. Durable and stylish, the sof-trac mat is a water sport enthusiast favorite. (Shown in the Cobalt R8.)
- Stainless Steel Foot Tread (helm only) Detailx
Stainless Steel Foot Tread (helm only)
Stainless steel with rubber tread, the footrest instantly becomes an interior detail worth bragging about. Size and shape will vary slightly for custom fit to specific boat model.
- Throw Pillows, Weighted (10) Detailx
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Throw Pillows, Weighted (4) Detailx
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
- Dinette Table, Solid Teak Detail
CS22 Exterior - Optional
- Sof-Trac Mat, Swim Platform (w/step)
- COBALT Oval Logo, Recessed Detailx
COBALT Oval Logo, Recessed
The subdued style of the oval logo recesses the Cobalt logo and brand for an elegant and traditional look. It is integrated in to the hull side for reduced potential for dockside damage.
- Docking Lights-Stainless Steel Detail
- Fender Clips w/Line (4) Detailx
Fender Clips w/Line (4)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
- Flagpole w/Flag Detail
- Flip-Down Swim Step w/o Ladder Detail
- Sof-Trac Mat, Swim Platform (w/o step)
- Swim Platform Transom Lighting
- Transom Tilt Switch Detailx
Transom Tilt Switch
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
- Underwater Lighting Detailx
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model 302. Swim platform transom lighting also shown.
- Wakeboard Racks, Elite (Alum) Detail
- Wakeboard Racks, Triton Detail
- Arch, Zenith Folding w/Bimini (w/o RGB lighting) Detail
- Arch, Zenith Folding w/Bimini (w/RGB lighting) Detail
- Roswell Board Rack Covers
CS22 Structure and Safety - Optional
- Battery Maintainer/Charger, 110v Detailx
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Battery Maintainer/Charger, 220v Detailx
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
- Battery Switch, Dual w/ACR (required) Detailx
Battery Switch, Dual w/ACR (required)
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
- CE Requirements w/Auto Fire Extinguisher Detail
- Cruise Control-Smart Tow (Merc DTS)
- Cruise Control-Zero Off
- Fire Extinguisher, Automatic System Detailx
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
- Rearview Mirror, PTM w/Custom Cover Detailx
Rearview Mirror, PTM w/Custom Cover
The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.
- Tool Kit Detail
Download PDF
Experience Extraordinary
Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:
- Patented Swim Step for easy water access
- Maximum interior space
- Hand-laid fiberglass with Kevlar at keel
- Deep-V hull design for smooth ride
- Double French-stitched interiors
- Molded-in gelcoat graphics
