A40 Coupe

STERNDRIVE  |  A Series | A40 Coupe

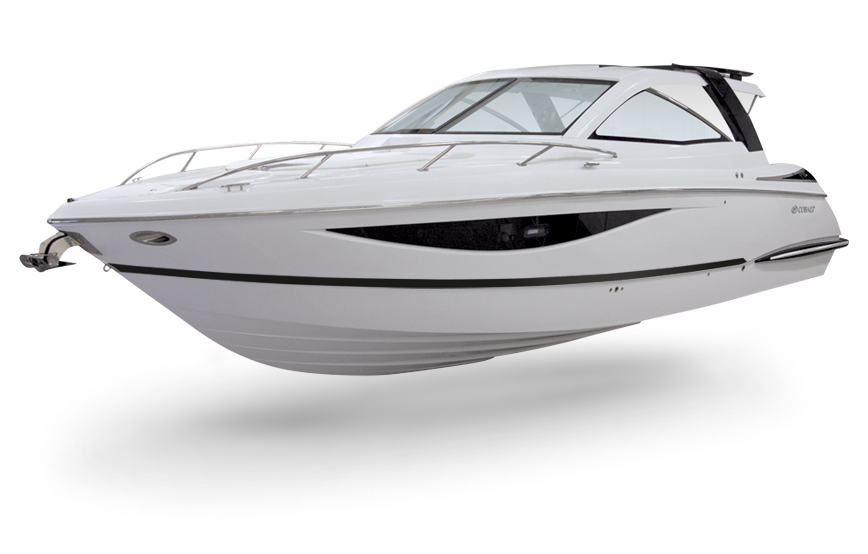

Cobalt A Series A40 Coupe

A40 Coupe

Featuring unmatched elegance, luxury, and class, the Cobalt A40 Coupe is the ultimate boating experience. Impeccable exterior lines accent a fiberglass coupe top, navigation equipment shelf, sliding sunroof, and an available retractable sure shade. A 12′ beam provides room for the entire crew and their gear, as well as integrated storage for big-day boating.


39' 6"



Seating Capacity:


Dry Weight:

19,926 lbs
A40 Coupe Music Video

A40 Coupe Music Video

A40 Coupe Music Video

Technical Details

Length Overall w/ Swim Platform39' 6''12.04 m
Beam12' 0''3.66 m
Interior Cockpit Width10' 3''3.12 m
Deadrise at Transom20º20º
Fuel Capacity - Gasoline225 gal.852 L
Fuel Capacity - Diesel225 gal.852 L
Freshwater Capacity50 gal189 L
Holding Tank Capacity28 gal.106 L
Bridge Clearance13' 9''4.19 m
Draft Drive Up33''.84 m
Draft Drive Down48''1.22 m
Dry Weight19,926 lbs.9,038 kg
Boat Certified CapacityYacht Certified
Boat Certified Capacity w/gearYacht Certified
Power Selections+-

A40 Coupe Volvo Penta Power Selections

  • Twin Diesel D6 400 - 400 hp (298 PkW)

A40 Coupe Engine Enhancements - Standard

  • Active Corrosion Protection-Vol Diesel
  • EVC w/PTA & Cruise (Volvo)
  • Trip Computer (Volvo EVC)

A40 Coupe Engine Enhancements - Optional

  • Autopilot (Volvo)
  • Joystick Sterndrive (EVC)-Volvo
Standard Equipment+-

A40 Coupe Dash and Instrumentation - Standard

  • Compass, Digital
  • Depth & Water/Air Temp Pkg.
  • Glass Cockpit, Volvo
  • Illuminated Stainless Steel Switches
  • Premium Black Leather/SS Steering Wheel
  • Remote Helm Battery Switches
  • Windshield Wiper, Stbd.

A40 Coupe Entertainment System - Standard

  • Cabin Entertainment Package, Main Cabin
  • Custom Acoustic Speaker Covers
  • iPod/USB/MP3 Port
  • Premium Sound System w/Transom Remote & Spkrs.
  • Stereo Remote, Dash
  • TV Antenna & Cable Hook-Up

A40 Coupe Interior - Standard

  • Air Conditioning/Heating, Cabin
  • Cabin Skylights
  • Cabinetry, Espresso, Matte Finish
  • Dinette Table, Cabin
  • Fiberglass Liner w/Sisal Floor Covering
  • Galley w/Sink & Refrigerator
  • Head w/Sink, Shower & VacuFlush Toilet
  • LED Overhead Lighting, Cabin
  • Microwave, 110v
  • Mid-Berth Filler Cushion
  • Panoramic Windows w/Opening Hatch
  • Suspended Cabin Headliner
  • V-Berth Filler Cushion

A40 Coupe Exterior - Standard

  • Swim Platform w/Ladder, Hydraulic
  • Aft Walk-Thru Gates
  • Bow Rails, Stainless Steel, 10''
  • Fender Clips w/Line (6)
  • Foredeck Sunpads w/Integrated Lounge Position
  • Frameless Walk-Thru Windshield
  • Galley w/Sink & Refrigerator, Cockpit
  • Motorbox Actuator, Electric
  • Oversized Deck Hatch
  • Snap-In Carpet, Cockpit
  • Stainless Steel Cupholders
  • Teak Accent Package
  • Transom Storage Lockers

A40 Coupe Structure and Safety - Standard

  • 10/5/3 Year Warranty Protection
  • Battery Charger, 60 amp
  • Circuit Breaker Protected Elec System Detail
  • CO Monitor (2)
  • Composite Floor
  • Composite Transom
  • Fiberglass Cockpit Liner
  • Fiberglass Stringer System
  • Fire Extinguisher, Automatic System (generator) Detail
  • Fire Extinguisher, Automatic System-Dual Detail
  • Fire Extinguisher, Manual (2)
  • Galvanic Protection
  • Generator (Diesel) 6.0kW w/Sound Shield
  • Ignition Safety Switch Detail
  • Kevlar Reinforced Hull
  • Shorepower-110v, Dual 30 amp
  • Stainless Steel Windshield Braces Detail
  • Tool Kit Detail
  • Trim Tabs, Electric w/Autoglide System
  • Windlass, All Chain w/Anchor Detail
Optional Equipment+-

A40 Coupe Canvas - Optional

  • Electric Sureshade
  • Full Canvas Enclosure Package

A40 Coupe Dash and Instrumentation - Optional

  • Compass, Magnetic
  • Radar, Garmin 24'' HD Dome
  • Radar, Garmin 48'' Open Array
  • VHF Radio w/Antenna
  • Windshield Wiper, Port
  • Radar, Garmin 24'' HD Dome w/KVH
  • Radar, Garmin 48'' Open Array w/KVH

A40 Coupe Entertainment System - Optional

  • Satellite Radio System
  • Satellite TV (Inland)
  • Satellite Weather System
  • TV, 12v w/HDMI Input, Mid Cabin
  • TV, Cockpit Galley (removable)
  • Satellite TV (Coastal)

A40 Coupe Interior - Optional

  • Air Conditioning/Heat Self-Prime,Cabin
  • Air Conditioning/Heat Self-Prime,Cockpit
  • Air Conditioning/Heating, Cockpit
  • Central Vacuum System
  • Custom Wood Floor, Main Cabin
  • Gray Water System
  • Head w/VacuFlush, Macerator
  • LED Interior Accent Lighting (RGB)
  • Remote Courtesy Lights w/key fob
  • Throw Pillows, Weighted (10) Detail
  • Throw Pillows, Weighted (4) Detail

A40 Coupe Exterior - Optional

  • Barbeque Grill ,Cockpit Detail
  • Cleats, Port & Stbd. (add'l)
  • Coupe Top Vertical Legs, Black Detail
  • Coupe Top Vertical Legs, White Detail
  • Dinette Table, Cockpit
  • Docking Lights-Stainless Steel Detail
  • Flagpole w/Flag Detail
  • Floor Covering, Sea Grass-Cockpit Detail
  • Fresh Water Washdown, Bow
  • Ice Maker, Cockpit (in lieu of storage console)
  • Refrigerator, Cockpit (in lieu of storage console)
  • Spotlight, Remote
  • Transom Shower
  • Underwater Lighting Detail

A40 Coupe Structure and Safety - Optional

  • CE Requirements
  • Chain Counter for std. Windlass
  • Shorepower-220v, Dual 30 amp

Download PDFDownload PDF

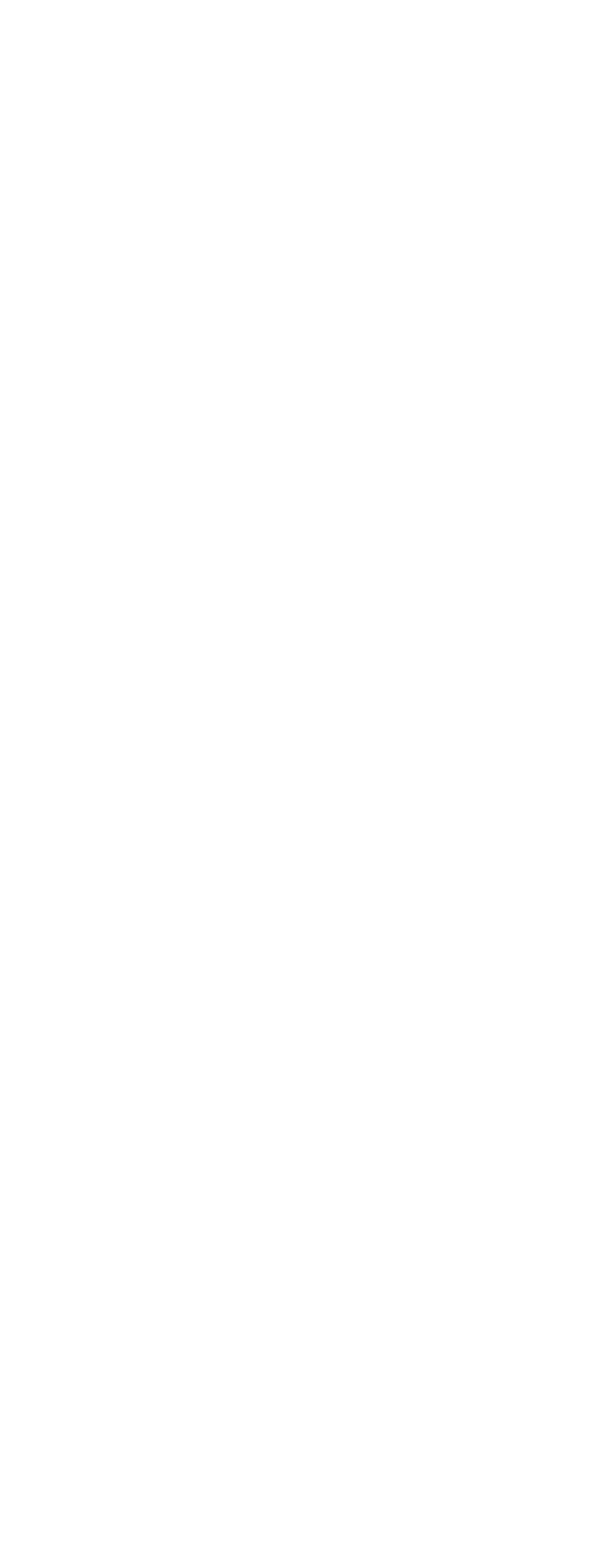

A40 Coupe Floorplan

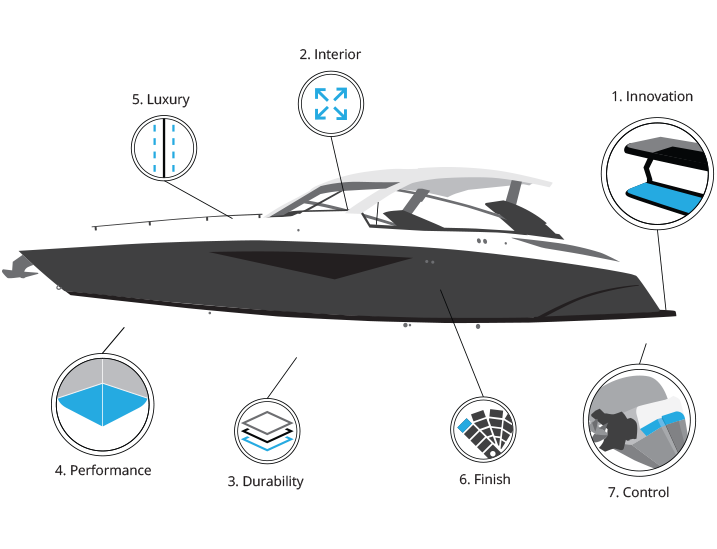

Only A Cobalt A40 Coupe

Only A Cobalt

Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:

  1. Hydraulic swim platform
  2. Maximum interior space
  3. 21-layer hand-laid fiberglass at keel
  4. Deep-V hull design for smooth ride
  5. Double French-stitched interiors
  6. Molded-in gelcoat graphics
  7. Extended running surface
