R5

STERNDRIVE | R Series | R5

R5

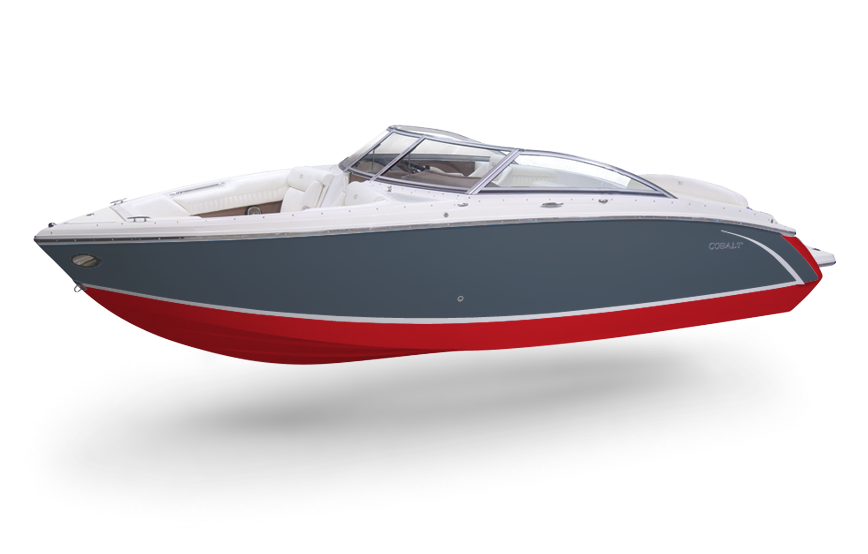

Equal parts aggressive and agile, the R5 is a mid-sized runabout that delivers a ride unlike any other. And while the R5 still offers the luxury and performance you expect from a Cobalt, its sleek profile is what really turns heads. With a walk-thru transom, swim platform and sun pad seamlessly integrated into the R5’s cohesive design, the result is a boat that strikes the perfect balance between form and function.

LOA:

25' 8"

Beam:

8' 6"

Seating Capacity:

14 persons

Dry Weight:

4,880 lbs

Technical Details

Specifications+-

Length Overall w/Swim Platform	25' 8''	7.82 m
Beam	8' 6''	2.59 m
Interior Cockpit Width	95''	2.41 m
Deadrise at Transom	21Âº	21Âº
Fuel Capacity	48 gal.	182 L
Freshwater Capacity	10 gal.	38 L
Bridge Clearance w/o Bimini	64''	1.63 m
Bridge Clearance w/Bimini	91''	2.31 m
Bridge Clearance w/Arch or Tower	98''	2.49 m
Draft Drive Up	21''	.53 m
Draft Drive Down	37''	.94 m
Dry Weight	4880 lbs.	2214 kg
Boat Certified Capacity	14 persons
Boat Certified Capacity w/gear	2250 lbs.	1021 kg

Power Selections+-

R5 Volvo Penta Power Selections

V8-300CE-G EVC DP - 300 hp (221 PkW)
V8-350CE-G EVC DP - 350 hp (261 Pkw)
V8-380CE EVC DP - 380 hp (283 PkW)
V8-430CE EVC DP - 430 hp (321 PkW)

R5 MerCruiser Power Selections

6.2 L MPI ECT DTS-300 B3 - 300 hp (221 PkW)
6.2 L MPI ECT DTS-350 B3 - 350 hp (261 PkW)
8.2 Mag ECT DTS B3X - 380 hp (283 PkW)
8.2 Mag HO ECT DTS B3X - 430 hp (321 PkW)

R5 Engine Enhancements - Standard

DTS (Merc)
EVC w/PTA & Cruise (Volvo)

R5 Engine Enhancements - Optional

Active Trim, Merc (requires DTS)
Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
Ocean-X (Volvo)
Seacore (Merc)
Tow Mode (Volvo EVC)

Standard Equipment+-

R5 Dash and Instrumentation - Standard

Accessory Power Plug - 12 Volt Detail
x
Accessory Power Plug - 12 Volt
12v outlets provide necessary power to mobile devices on-board.
Black Leather/SS Steering Wheel Detail
x
Black Leather/SS Steering Wheel
Cobalt's exclusive leather wrapped steering wheel provides the ultimate in style and control.
Color-Matched Aluminum Dash Panels
Composite Helm Eyebrow, Custom Stitching
Dash Perimeter SS Accent
Depth & Water Temp Pkg.
Glass Cockpit, Dual Garmin 7607
Gloss Black Dash Console w/SS Accents
Hour Meter
Illuminated Switch Panel/Switches Detail
x
Illuminated Switch Panel/Switches
Illuminated stainless steel switches with laser etched identifiers provide the perfect amount of lighting to the switch panel.
Stainless Steel Switches

R5 Entertainment System - Standard

Stereo Remote, Transom (Prem. Sound)
Custom Acoustic Speaker Covers
iPod/USB/MP3 Port
Stereo Remote, Dash Detail
x
Stereo Remote, Dash
Control all stereo functions from the convenient dash mounted head unit.
Sound System, Bluetooth, w/6 Spkrs.

R5 Interior - Standard

Aft Facing Rumble Seat
Aft Sunpad Backrest SS Accent Rail
Aft Walk-Thru Carpet
Bow Cushion Insert, Stbd.
Bow Walk-Thru Doors
Carpet, 40 oz., Snap-In w/Neoprene Back
Del Mar Helm Capt. Chair
Head w/Porta Potti Detail
x
Head w/Porta Potti
Easily accessible, upholstered head compartment. Shown with removable Porta Potti.
Passenger Seat Flip Backrest System Detail
x
Passenger Seat Flip Backrest System
Dual position port side seating with a fore and aft adjustable backrest and passenger flip up seat. Storage is located beneath port side seating.
Removable Bow & Cockpit Carpet
Seating Varadense Comfort
Sundeck Convertible Lounger Detail
x
Sundeck Convertible Lounger
Lounger converts from standard seating configuration to sun pad or rumble seat.
Trash Receptacle, Cockpit

R5 Exterior - Standard

Anchor Locker
Bow Scuff Plate, Stainless Steel Detail
x
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt.
Extended Running Surface
Fender Clips w/Line (4) Detail
x
Fender Clips w/Line (4)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
Graphics, Molded-In Gelcoat
Midship Cleats
Ski Pylon - Stainless Steel
Sky Light (Head Compartment)
SS Tubular Platform Perimeter Rail
Stainless Steel Engine Vents
Stainless Top Trim Windshield
Swim Platform w/Flip-Down Swim Step Detail
x
Swim Platform w/Flip-Down Swim Step
The Cobalt patented swim step is designed for boating simplicity. A stainless latch releases the step for recessed storage or simply deploy for boarding.

R5 Structure and Safety - Standard

10/5/3 Year Warranty Protection
Battery Switch, Single Detail
x
Battery Switch, Single
Battery switch disconnects the single engine battery from entire vessel, with the exception of the bilge pump and stereo memory.
Circuit Breaker Protected Elec System Detail
x
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
Composite Floor
Composite Transom
Fiberglass Cockpit Liner
Fiberglass Stringer System
Fire Extinguisher, Manual
Ignition Safety Switch Detail
x
Ignition Safety Switch
Standard engine ignition safety switch with belt clip.
Kevlar Reinforced Hull
Stainless Steel Windshield Braces Detail
x
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
Through Prop Exhaust

Optional Equipment+-

R5 Canvas - Optional

Bimini, Premium
Bimini, Premium Easy-Fold
Bow Tonneau Cover Detail
x
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
Cockpit Tonneau Cover Detail
x
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top).
Mooring Cover Detail
x
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, and stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.

R5 Dash and Instrumentation - Optional

Makassar Dash/Interior Trim Pkg.
Rudder Indicator, Merc
Rudder Indicator, Volvo
XM Weather

R5 Entertainment System - Optional

Stereo Remote, Transom (Std. Sound)
Prem Sound w/Transom Spkrs.
Prem Sound w/Transom & Arch Spkrs-1 pr.
Plat Sound w/Transom Spkrs.
Plat Sound w/Transom & Arch Spkrs-2 pr.
Satellite Radio System

R5 Interior - Optional

Captain's Chair, Power
Aft Walk-Thru Gate
Air Compressor w/Holder
Bow Center Cushion Insert
Dinette Table w/CP & Sunpad Receptacle Detail
x
Dinette Table w/CP & Sunpad Receptacle
The R-5 dinette table with cockpit and sun pad receptacle provides the availability of placing the cockpit table at either location in conveniently placed stainless steel brackets.
Floor Covering, Sea Grass Detail
x
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
Grey Water System
Head w/Electric Porcelain Toilet Detail
x
Head w/Electric Porcelain Toilet
The upgraded porcelain head with holding tank and dockside receptacle.
Head w/Electric Porcelain, Macerator Detail
x
Head w/Electric Porcelain, Macerator
The Electric Porcelain head with macerator provides for overboard discharge. Local restrictions and laws apply.
Head w/Pump Out Porta-Potti Detail
x
Head w/Pump Out Porta-Potti
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
Head w/Pump Out Porta-Potti, Macerator Detail
x
Head w/Pump Out Porta-Potti, Macerator
Easily accessible, upholstered head compartment. Shown with fixed Porta Potti.
LED Interior Accent Lighting (RGB)
Colored Quilted-Pattern Stitching Detail
x
Colored Quilted-Pattern Stitching
Remote Courtesy Lights w/key fob Detail
x
Remote Courtesy Lights w/key fob
Remote lighting is as simple as the touch of your key fob.
Sink Console (head compartment) Detail
x
Sink Console (head compartment)
Easily accessible, upholstered head compartment. Shown with porcelain toilet and sink console.
Sof-Trac Marine Mat, Cockpit
Stainless Steel Foot Tread (helm only) Detail
x
Stainless Steel Foot Tread (helm only)
Stainless steel with rubber tread, the footrest instantly becomes an interior detail worth bragging about. Size and shape will vary slightly for custom fit to specific boat model.
Sunpad Filler Cushion (w/Dinette) Detail
x
Sunpad Filler Cushion (w/Dinette)
port side aft removable filler cushion mounts in the same hardware as the dinette table.
Sunpad Filler Cushion (w/o Dinette) Detail
x
Sunpad Filler Cushion (w/o Dinette)
Port side aft cushion and stainless steel mounting hardware.
Throw Pillows, Weighted (10) Detail
x
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
Throw Pillows, Weighted (4) Detail
x
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.

R5 Exterior - Optional

Umbrella w/Receiver (ski pylon mounted)
Wakeboard Racks, Elite (Alum)
Wakeboard Racks, Triton
Arch, Elec Folding w/Rotating Sunshade Detail
x
Arch, Elec Folding w/Rotating Sunshade
Arch, Folding w/Rotating Sunshade Detail
x
Arch, Folding w/Rotating Sunshade
Arch, Alum, Folding w/Bimini
Arch, Elec, Alum Folding w/Bimini
Arch, SS/Alum w/Sunshade
COBALT Oval Logo, Recessed
Docking Lights-Stainless Steel Detail
x
Docking Lights-Stainless Steel
The docking lights with stainless steel trim rings.
Flagpole w/Flag
Motorbox Actuator
Portal Light (1 in Head Compartment) Detail
x
Portal Light (1 in Head Compartment)
Stainless steel opening portal light with screen located at port side head compartment provides adequate ventilation and ambient sunlight.
Sof-Trac Mat, Flip-Down Swim Step
Swim Platform Transom Lighting Detail
x
Swim Platform Transom Lighting
LED transom lighting provides the appropriate level of illumination for the perfect evening of entertaining friends. Shown on model 242 with standard swim platform.
Transhield Shipping Cover
Transom Shower Detail
x
Transom Shower
Freshwater wash down with pressure water system and fresh water tank.
Transom Tilt Switch Detail
x
Transom Tilt Switch
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
Underwater Lighting Detail
x
Underwater Lighting
LED underwater lighting system includes two light pods and the switch module. Beautiful evenings begin with illumination. Shown on model 302. Swim platform transom lighting also shown.

R5 Structure and Safety - Optional

Battery Maintainer/Charger, 110v Detail
x
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
Battery Maintainer/Charger, 220v Detail
x
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.
Battery Switch, Dual w/ACR Detail
x
Battery Switch, Dual w/ACR
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
Captain's Call Exhaust
Captain's Call Plus (w/Mufflers)
CE Requirements w/Automatic Fire Extinguisher
Cruise Control-Smart Tow (Merc DTS)
Cruise Control-Zero Off (Vol EVC)
Drivers Rearview Mirror (W/S Mount) Detail
x
Drivers Rearview Mirror (W/S Mount)
The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.
Fire Extinguisher, Automatic System Detail
x
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
Tool Kit Detail
x
Tool Kit
Convenient access to screwdrivers, pliers, and a crescent wrench with customized sunbrella storage container.
Trim Tabs w/Indicators
Windlass, All Chain w/Anchor Detail
x
Windlass, All Chain w/Anchor
###############################################################################################################################################################################################################################################################

Download PDF

Only A Cobalt

Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:

Patented Swim Step for easy water access
Maximum interior space
16-layer hand-laid fiberglass at keel
Deep-V hull design for smooth ride
Double French-stitched interiors
Molded-in gelcoat graphics on exterior
Extended running surface
