200S

STERNDRIVE | 10 Series | 200S

200S

Where top-shelf design, construction and performance were once reserved for larger boats, the 200S changes the game. This unique 20-footer boasts an 89″ wide cockpit. Plus, the sculpted hull delivers long, purposeful lines that sweep and flow to catch a perfect light, no matter the time of day.

LOA:

20' 10"

Beam:

8' 4"

Seating Capacity:

11 persons

Dry Weight:

3,500 lbs

Sport Package

The Cobalt Sport Package brings an additional high energy touch to the already-athletic 10 Series models. With bold interior color accents, color matched gauges at the dash, and a special edition water sports tower, your new 200S will step-up and stand-out.

Learn More

Technical Details

Specifications+-

Length Overall w/ Swim Platform	20' 10''	6.35 m
Beam	8' 4''	2.54 m
Deadrise at Transom	20º	20º
Fuel Capacity	47 gal.	178 L
Bridge Clearance w/o Bimini	3' 11''	1.19 m
Bridge Clearance w/Tower	6' 10''	2.08 m
Draft Drive Up	24''	.61m
Draft Drive Down	37''	.94m
Dry Weight	3500 lbs.	1588 kg
Boat Certified Capacity	11 persons	11 persons
Boat Certified Capacity w/gear	1515 lbs.	687 kg

Power Selections+-

200S Volvo Penta Power Selections

V6-280C-G DP - 280 hp (209 PkW)
V8-300C-G DP - 300 hp (224 PkW)
V8-300CE-G DP - 300 hp (224 PkW)
V6-240C-G SX - 240 hp (179 PkW)
V6-240G DP (non-cat) - 240 hp (149 PkW)
V6-240G SX (non-cat) - 240 hp (149 PkW)
V6-240C-G DP - 240 hp (149 PkW)
V6-200G DP (non-cat) - 200 hp (149 PkW)
V6-200G SX (non-cat) - 200 hp (149 PkW)
V6-200C-G DP - 200 hp (149 PkW)
V6-200C-G SX - 200 hp (149 PkW)

200S MerCruiser Power Selections

6.2 L MPI ECT-300 B3 DTS - 300 hp (224 PkW)
4.5 L MPI ECT-250 Alpha - 250 hp (186 PkW)
4.5 L MPI ECT-250 B3 - 250 hp (186 PkW)
4.5 L MPI-200 Alpha (non-cat) - 200 hp (149 PkW)
6.2 L MPI ECT-300 B3 - 300 hp (224 PkW)
4.5 L MPI ECT-200 Alpha - 200 hp (149 PkW)

200S Engine Enhancements - Optional

EVC (Volvo)
Active Trim, Merc (requires DTS)
DTS (Merc)
Seacore (Merc)
Tow Mode (Volvo EVC)
Ocean-X (Volvo)
Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)

Standard Equipment+-

200S Dash and Instrumentation - Standard

Stainless Steel Switches
Leather Steering Wheel w/Auto Leveling Hub
Hour Meter
Depth & Water/Air Temp Gauge Pkg.
Composite Helm Eyebrow, Custom Stitching
Accessory Power Plug - 12 Volt Detail
x
Accessory Power Plug - 12 Volt
Aluminum Dash Panels
Color-Matched Dash Panels

200S Entertainment System - Standard

Stereo Remote, Transom (Prem. Sound)
Stereo Remote, Dash Detail
x
Stereo Remote, Dash
Dash mounted control of the stereo from the helm station while the main head unit is securely mounted in a lockable compartment in the passenger seat area.
Sound System, Bluetooth, w/6 Spkrs.
iPod/USB/MP3 Port

200S Interior - Standard

Seating, Helm Flip-Up
Seating Varadense Comfort
Carpet, 40 oz., Snap-In w/Neoprene Back
Removable Bow & Cockpit Carpet
Removable Ice Chest
Aft Facing Rumble Seat
Aft Sunpad w/Walk-Thru Transom
Aft Walk-Thru Carpet
Bow Walk-Thru Door
'S'' Sport Seating Configuration

200S Exterior - Standard

Transhield Shipping Cover
SS Tubular Platform Perimeter Rail
Stainless Top Trim Windshield
Ski Tow Eye, Stainless Steel
Extended Running Surface
Flip-Down Swim Step w/o Ladder
Graphics, Molded-In Gelcoat
Midship Cleats
Bow Scuff Plate, Stainless Steel Detail
x
Bow Scuff Plate, Stainless Steel
Protect the gelcoat from trailer hook damage with the unparalleled bow scuff plate. Both fashionable and functional, the bow scuff plate from Cobalt is through bolted and designed custom for every Cobalt. Style may vary slightly depending on model.
Anchor Locker

200S Structure and Safety - Standard

Through Prop Exhaust
Stainless Steel Windshield Braces Detail
x
Stainless Steel Windshield Braces
Solid stainless steel windshield support stanchions. Installation will vary depending on specific boat model.
Kevlar Reinforced Hull
Ignition Safety Switch Detail
x
Ignition Safety Switch
Standard engine ignition safety switch with belt clip.
Fiberglass Cockpit Liner
Fiberglass Stringer System
Fire Extinguisher, Manual
Composite Transom
Composite Seat Bases
Composite Floor
Circuit Breaker Protected Elec System Detail
x
Circuit Breaker Protected Elec System
Stainless steel circuit breakers can be reset with the touch of a button, and provide surge protection for the electrical system. Installation will vary depending on specific boat model.
Battery Switch, Single Detail
x
Battery Switch, Single
Battery switch disconnects the single engine battery from entire vessel, with the exception of the bilge pump and stereo memory.
10/5/3 Year Warranty Protection

Optional Equipment+-

200S Canvas - Optional

Bimini Detail
x
Bimini
Mooring Cover Detail
x
Mooring Cover
The ultimate in weather protection, our mooring cover is custom built for each Cobalt model. The custom cover includes velcro closures around the tops, stainless steel winches on the gunwale straps, and tent poles to prevent water pooling.
Bow Tonneau Cover Detail
x
Bow Tonneau Cover
Sunbrella Canvas bow cover with stainless steel snaps and velcro which attaches to cockpit cover.
Cockpit Tonneau Cover Detail
x
Cockpit Tonneau Cover
Sunbrella Cockpit Cover with stainless steel snaps custom designed for each Cobalt (including those boats with an arch or Bimini top). Shown on model 200.

200S Dash and Instrumentation - Optional

Rudder Indicator, Merc
Rudder Indicator, Volvo
XM Weather
Compass
GPS, Garmin 7607, Touch Screen

200S Entertainment System - Optional

Prem Sound w/Transom & Arch Spkrs-1 pr.
Prem Sound w/Transom Spkrs.
Satellite Radio System
Stereo Remote, Transom (Std. Sound)

200S Interior - Optional

Throw Pillows, Weighted (4) Detail
x
Throw Pillows, Weighted (4)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
Throw Pillows, Weighted (10) Detail
x
Throw Pillows, Weighted (10)
Pillows are filled with 4 pounds of Vyram weighted pellets for stable placement while boat is underway. Available in five Sunbrella outdoor fabric colors. Size: 22 x 22 inches.
Remote Courtesy Lights w/key fob Detail
x
Remote Courtesy Lights w/key fob
Remote lighting is as simple as the touch of your key fob.
Sof-Trac Marine Mat, Cockpit
LED Interior Accent Lighting (RGB)
Dinette Table w/cockpit receptacle
Floor Covering, Sea Grass Detail
x
Floor Covering, Sea Grass
Sea Grass floor covering creates an elegant and comfortable style to the interior of any Cobalt. Rubber backing and stainless steel snaps make it as durable as it is elegant.
Aft Walk-Thru Gate
Air Compressor w/Holder
Bow Center Cushion Insert
Aft Walk-Thru Filler Cushions

200S Exterior - Optional

Wakeboard Racks, Triton
Wakeboard Racks, Elite (Alum)
Transom Tilt Switch Detail
x
Transom Tilt Switch
Control the drive trim adjustment at the transom for utilization while trailering or dockside.
Sof-Trac Mat, Swim Platform
Flagpole w/Flag Detail
x
Flagpole w/Flag
Stainless steel flag pole with flag clips, receptacle and flag. Shown on model 232 with arch.
Fender Clips w/Line (4) Detail
x
Fender Clips w/Line (4)
A set of Custom Stainless Fender Clips, which provide a solid and secure place to hang the fenders. Includes the insert, the receptacle, and fender lines.
Docking Lights-Stainless Steel Detail
x
Docking Lights-Stainless Steel
The docking lights with stainless steel trim rings.
COBALT Oval Logo, Recessed
Arch, Alum, Folding w/Bimini
Arch Elec, Alum Folding w/Bimini

200S Structure and Safety - Optional

Tool Kit Detail
x
Tool Kit
Fire Extinguisher, Automatic System Detail
x
Fire Extinguisher, Automatic System
Heat sensitive automatic Fireboy system mounted in the engine compartment designed to instantly eliminate flames in the event of an engine fire. Installation will vary depending on specific boat model.
Cruise Control-Zero Off (Vol EVC)
Drivers Rearview Mirror (W/S Mount) Detail
x
Drivers Rearview Mirror (W/S Mount)
The clamp-on design is extremely solid and secure, but easily removed. A single tension knob will loosen the clamp and arm articulation for adjustment. Just position and lock everything down.
CE Requirements w/Auto Fire Extinguisher
Cruise Control-Smart Tow (Merc DTS)
Battery Switch, Dual w/ACR (required) Detail
x
Battery Switch, Dual w/ACR (required)
Dual battery and voltage sensitive relay provides instant accessibility emergency power. Installation varies with specific boat model.
Battery Maintainer/Charger, 110v Detail
x
Battery Maintainer/Charger, 110v
Built in battery charger located in the engine compartment with external power connection at the transom.
Battery Maintainer/Charger, 220v Detail
x
Battery Maintainer/Charger, 220v
Built in battery charger located in the engine compartment with external power connection at the transom.

Download PDF

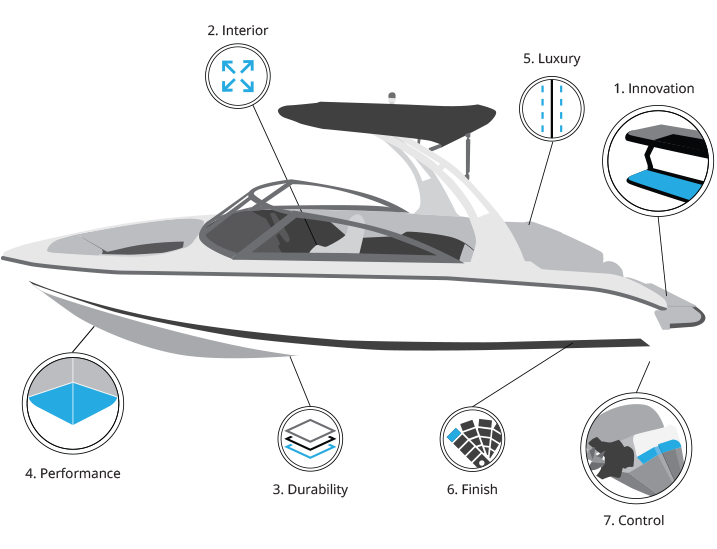

Only A Cobalt

Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:

Patented Swim Step for easy water access
Maximum interior space
16-layer hand-laid fiberglass with Kevlar at keel
Deep-V hull design for smooth ride
Double French-stitched interiors
Molded-in gelcoat graphics
Extended running surface
