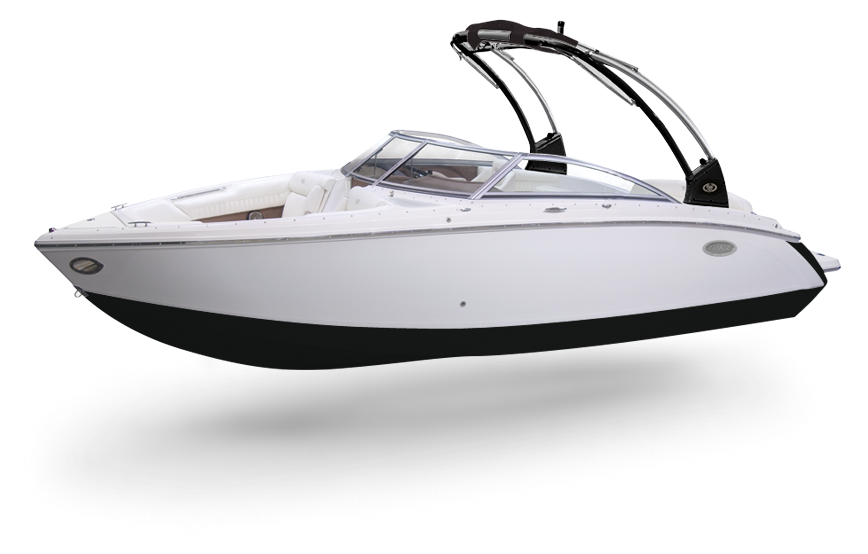

For the boating enthusiast who wants to have it all, the Cobalt R7 Surf delivers. Crafted to meet the demands of skilled surfers and families alike, Cobalt’s premium offering has no parallel. Offering the best ride in our Surf Series, best-in-class entertainment capacity, and the unmatched ability to take on big water for smoother distance cruising, the R7 Surf truly does it all, for all.

LOA:

27' 6"

Beam:

8' 6"

Seating Capacity:

14 persons

Dry Weight:

5,850 lbs
TruWave Surf

TruWave Surf

Description text goes here

TruWave Surf
TruWave Instructional Video

TruWave Instructional Video

Description text goes here

TruWave Instructional Video
What They're Saying

What They're Saying

Description text goes here

What They're Saying

Technical Details

Specifications+-
Length Overall w/Swim Platform27' 6''8.38 m
Beam8' 6''2.59 m
Interior Cockpit Width95''2.41 m
Deadrise at Transom21º21º
Fuel Capacity78 gal.295 L
Freshwater Capacity10 gal.38 L
Bridge Clearance w/o Bimini64''1.63 m
Bridge Clearance w/Bimini91''2.31 m
Bridge Clearance w/Arch or Tower98''2.49 m
Draft Drive Up34''.86 m
Draft Drive Down37''.94 m
Dry Weight5850 lbs.2653 kg
Ballast Capacity Total (4 tanks)1225 lbs.555 Kg
Boat Certified CapacityYacht CertifiedYacht Certified
Boat Certified Capacity w/gearYacht CertifiedYacht Certified
Power Selections+-

R7 Surf Volvo Penta Power Selections

  • V8-350CE-G EVC DP (FWD) - 350 hp (261 Pkw)
  • V8-380CE EVC DP (FWD) - 380 hp (283 PkW)
  • V8-430CE EVC DP (FWD) - 430 hp (321 PkW)

R7 Surf Engine Enhancements - Standard

  • EVC w/PTA & Cruise (Volvo)
  • Volvo Forward Drive (FWD)

R7 Surf Engine Enhancements - Optional

  • Anti-Corrosion System (Vol 200-300hp, Mer-Alpha)
  • Ocean-X (Volvo)
Standard Equipment+-

R7 Surf Dash and Instrumentation - Standard

  • Accessory Power Plug - 12 Volt Detail
  • Black Leather/SS Steering Wheel Detail
  • Color-Matched Aluminum Dash Panels
  • Composite Helm Eyebrow, Custom Stitching
  • Dash Perimeter SS Accent Trim
  • Depth & Water Temp Pkg.
  • Easy-Surf Electronic Control System
  • Glass Cockpit, Garmin 7607
  • Gloss Black Dash Console w/SS Accents
  • Hour Meter
  • Illuminated Switch Panel/Switches Detail
  • Stainless Steel Switches

R7 Surf Entertainment System - Standard

  • Custom Acoustic Speaker Covers
  • iPod/USB/MP3 Port
  • Sound System, Bluetooth, w/6 Spkrs.
  • Stereo Remote, Dash Detail
  • Stereo Remote, Transom (Prem. Sound)

R7 Surf Interior - Standard

  • Aft Facing Rumble Seat
  • Aft Sunpad Backrest SS Accent Rail
  • Aft Walk-Thru Carpet
  • Bow Cushion Insert, Stbd.
  • Bow Walk-Thru Doors
  • Carpet, 40 oz., Snap-In w/Neoprene Back
  • Console, Cockpit
  • Del Mar Helm Capt. Chair Detail
  • Head w/Porta Potti Detail
  • Passenger Seat Flip Backrest System Detail
  • Removable Bow & Cockpit Carpet
  • Seating Varadense Comfort
  • Sundeck Convertible Lounger Detail
  • Trash Receptacle, Cockpit

R7 Surf Exterior - Standard

  • Anchor Locker
  • Bow Scuff Plate, Stainless Steel Detail
  • Extended Running Surface
  • Fender Clips w/Line (4) Detail
  • Graphics, Molded-In Gelcoat
  • Midship Cleats
  • Ski Pylon (arch mounted)
  • Sky Light (Head Compartment)
  • SS Tubular Platform Perimeter Rail
  • Stainless Steel Engine Vents
  • Stainless Top Trim Windshield
  • Swim Platform w/Flip-Down Swim Step Detail
  • Transhield Shipping Cover
  • Arch, SS/Alum w/Sunshade
  • Sof-Trac Mat, Flip Down Swim Step
  • Wakeboard Racks, Elite (Alum)

R7 Surf Structure and Safety - Standard

  • 10/5/3 Year Warranty Protection
  • Battery Switch, Single Detail
  • Circuit Breaker Protected Elec System Detail
  • Composite Floor
  • Composite Transom
  • Cruise Control-Zero Off
  • Fiberglass Cockpit Liner
  • Fiberglass Stringer System
  • Fire Extinguisher, Manual
  • Ignition Safety Switch Detail
  • Kevlar Reinforced Hull
  • Rigid Multi-Tank Ballast System
  • Single-Axis Performance Surf Tab System
  • Stainless Steel Windshield Braces Detail
  • Through Prop Exhaust
Optional Equipment+-

R7 Surf Canvas - Optional

  • Bow Tonneau Cover Detail
  • Cockpit Tonneau Cover Detail
  • Mooring Cover Detail

R7 Surf Dash and Instrumentation - Optional

  • Makassar Dash/Interior Trim Pkg.
  • Rudder Indicator, Volvo
  • XM Weather

R7 Surf Entertainment System - Optional

  • Satellite Radio System
  • Plat Sound w/Transom & Arch Spkrs-2 pr.
  • Plat Sound w/Transom Spkrs.
  • Prem Sound w/Transom & Arch Spkrs-1 pr.
  • Prem Sound w/Transom Spkrs.
  • Stereo Remote, Transom (Std. Sound)

R7 Surf Interior - Optional

  • Air Compressor w/Holder
  • Bow Center Cushion Insert
  • Colored Quilted-Pattern Stitching Detail
  • Dinette Table w/CP & Sunpad Receptacle Detail
  • Floor Covering, Sea Grass Detail
  • Head w/Electric Porcelain Toilet
  • Head w/Pump Out Porta Potti Detail
  • LED Interior Accent Lighting (RGB)
  • Remote Courtesy Lights w/key fob Detail
  • Sink Console (head compartment) Detail
  • Sink Console, Cockpit
  • Sof-Trac Marine Mat, Cockpit
  • Stainless Steel Foot Tread (helm only) Detail
  • Sunpad Filler Cushion (w/Dinette) Detail
  • Sunpad Filler Cushion (w/o Dinette) Detail
  • Throw Pillows, Weighted (10) Detail
  • Throw Pillows, Weighted (4) Detail
  • Head Surf Board Storage
  • Head w/Electric Porcelain, Macerator
  • Head w/Pump Out Porta-Potti, Macerator

R7 Surf Exterior - Optional

  • Arch Elec, Alum Folding w/Bimini
  • Arch, Alum, Folding w/Bimini
  • Arch, SS/Alum w/Sunshade (std)
  • Docking Lights-Stainless Steel Detail
  • Motorbox Actuator
  • Portal Light (1 in Head Compartment) Detail
  • Surf Tow Ball (2)-Folding Arch only
  • Swim Platform Transom Lighting Detail
  • Transom Shower Detail
  • Transom Tilt Switch Detail
  • Underwater Lighting Detail
  • Arch, Elec Folding w/Rotating Sunshade Detail
  • Arch, Folding w/Rotating Sunshade Detail
  • Wakeboard Racks, Triton

R7 Surf Structure and Safety - Optional

  • Battery Maintainer/Charger, 110v Detail
  • Battery Maintainer/Charger, 220v Detail
  • Battery Switch, Dual w/ACR (required)
  • CE Requirements w/Auto Fire Extinguisher
  • Drivers Rearview Mirror (W/S Mount) Detail
  • Fire Extinguisher, Automatic System Detail
  • Tool Kit Detail
  • Windlass, All Chain w/Anchor Detail

Download PDFDownload PDF

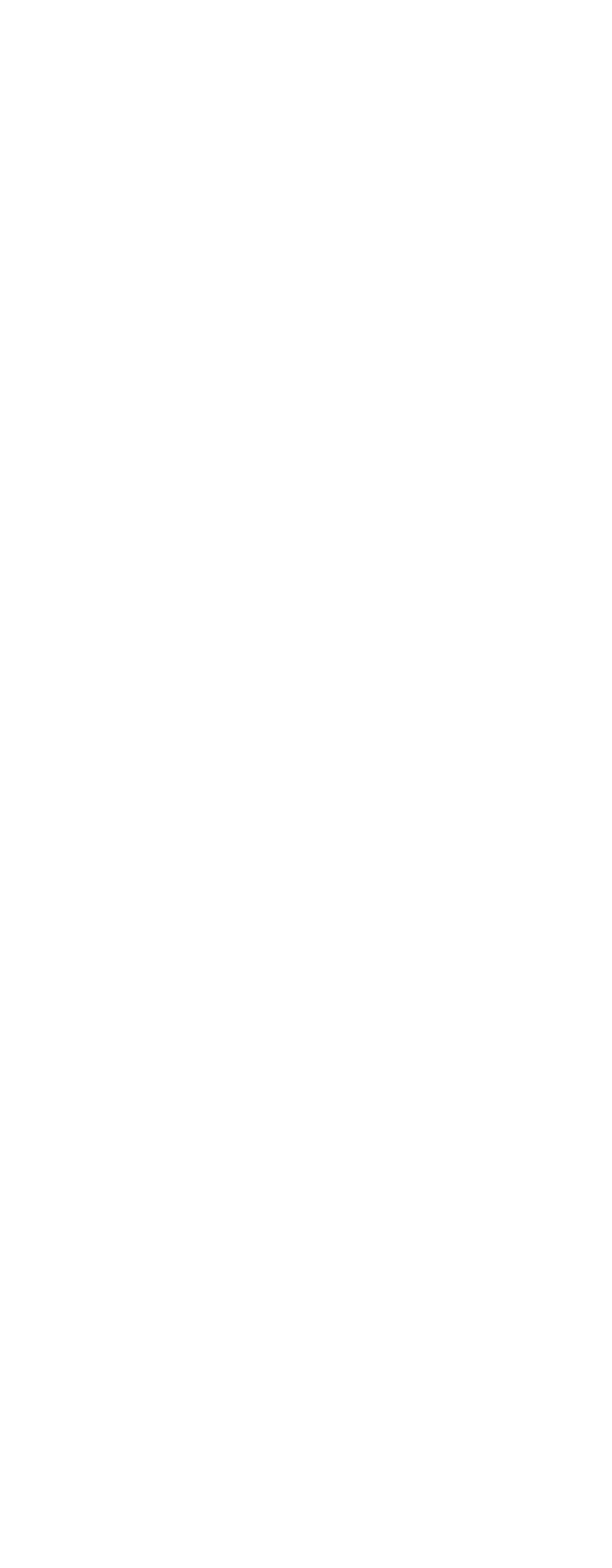

Cobalt R7 Floorplan
Only A Cobalt R7 Surf

Only A Cobalt

Since its first day on the water over 50 years ago, Cobalt’s commitment to performance, luxury and innovation has continued to set the standard for boating excellence. Only a Cobalt offers:

  1. Patented Swim Step for easy water access
  2. Reclamation Build Process for maximum interior space
  3. 16-layer hand-laid fiberglass at keel
  4. Deep V-hull design for smooth ride
  5. Double French-stitched interiors
  6. Molded-in gelcoat graphics on exterior
  7. Extended running surface
